1.8/2.2/2.5/3.2m UV Hybrid Printer

short description:

1. Using EP- i3200-U1, RH Gen5/Gen6, Konica;
2~21 PCS 2. Multiple color solutions for all kinds different demands
3.Universal Printer: can print almost all flatbed and roll material
4. Anti-crash Device: protect printhead
5. Milling Beam and THK Guide Make stable and Precision Movement


Product Detail

Parameter

Product Tags

UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of a material (called a “substrate”), specially designed UV lights follow close behind, curing – or drying – the ink instantly. Originally developed for quickly drying gel nail polishes during manicures, ultraviolet light applications quickly expanded into industrial and commercial markets. Because the UV lights cure any printed ink immediately, the dots of wet ink do not get a chance to spread out once printed, resulting in much finer detail. In addition, UV cured inks are weather-resistant and offer increased resistance to fading. This curing process is more environmentally friendly as it produces few VOC’s, odor, and heat. UV curing also allows the flatbed printer to be used with nontraditional materials like acrylic or aluminum.

One machine with flatbed printing and roll to roll printing function, is the biggest feature of hybrid printers. As a one-stop printing solution for flatbed and roll to roll printing, our digital UV hybrid printers has a extremely wide arrange of applications. They not only can print on flexible materials such canvas, vinyl stickers / banners, but also be quite suitable for rigid materials such as glass, wood, acrylic, etc.

Technical Characteristics

Standard extension platform, perfectly competent to print both roll and rigid media.
Cold light LED curing with tiny temperature variations ensures high printing quality.
High stability magnetic encoder strip.
Adjustable head height, laser positioning system, and movable printing platform result in high-efficiency printing jobs.
Air-shaft take-up system makes more stable paper collecting.
Stable printing technology and ink supply system reduce maintenance costs.
International ICC standard with profile curve adjustment function.

highlights

Integrated belt & flatbed media feeding system is competent to print both roll and rigid media. Folding extension frames saves space and cost as well. Independent widened platform Can accommodate more materials. Air-shaft take-up system makes more stable paper collecting.

Dual mute THK guide rails ensure the stability of printing and high-quality printing output. The sheet media is automatically positioned, and the assistance of the front pressure bar makes the material more smooth, ensuring the accuracy of printing. The automatic height measurement system automatically adjuststically adjusts the distance between the base plate and the media to guarantee the best quality.
The front LED lamp enhances the accuracy of color and makes the printing output more real. Multifunctional vacuum platform is divided into six areas to control accordingly with adjustable vacuum power. The material is always in good status during the printing process to avoid wrinkling. Bulky ink with an ink alarm system represents the advanced concept of industrial application to ensure long-term stable printing.

1.8/2.2/2.5/3.2m UV Hybrid Printer

1.8/2.2/2.5/3.2m UV Hybrid Printer


  • Previous:
  • Next:

  • Machine Specification

    Name 1.8/2.2/2.5/3.2m UV Hybrid Printer
    Model No. Aily Group-1800, 2200, 2500, 3200
    Machine Type Automatic, Flatbed, Heavy Body, Digital Printer
    Printer Head EP-i3200-U1, RH Gen5/Gen6, Konica
    Max Print Size 1800, 2200, 2500, 3200mm
    Max Print Height 120mm(including 2mm distance between head and media)
    Materials to Print PP Paper/Backlit film/Wall paperlvinylOne-way vision/Flex banner Metal, Plastic, Glass, Wood, Ceramics, Acrylic, Leather, etc
    Printing Method Drop-on-demand Piezo Electric Inkjet
    Printing Direction Unidirectional Printing or Bi-directional Printing Mode
    Printing Resolution Standard Dpi: 720×1200dpi
    Printing Quality True Photographic Quality
    Ink Colors CMYK , LC LM, W, V
    Ink Type UV ink
    Ink System CISS Built Inside With Ink Bottle
    Ink Supply 1L ink tank with positive pressure continuos supply (Bulk ink system)

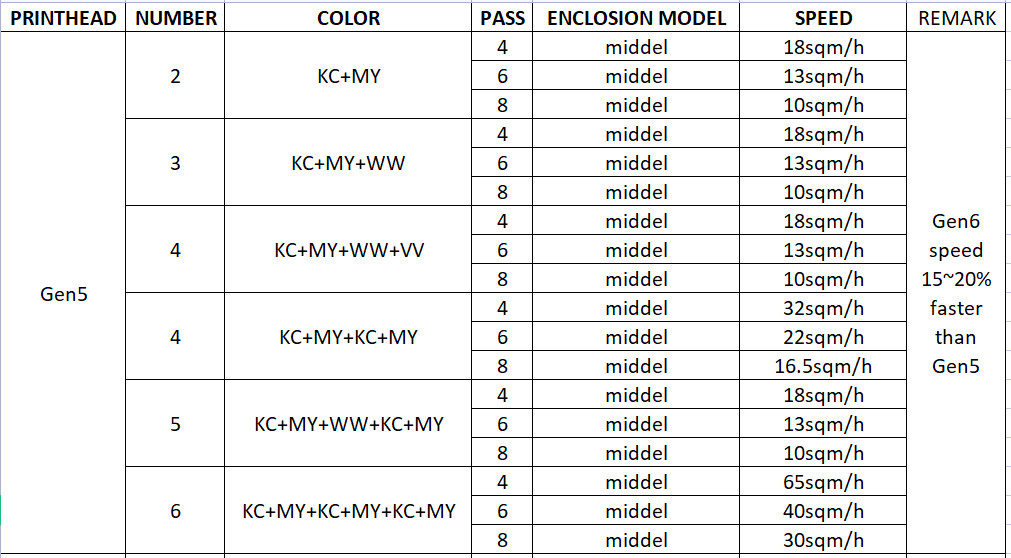

    Printing Speed 1.8/2.2/2.5/3.2m UV Hybrid Printer
    File Format PDF,JPG,TIFF,EPS,AI,etc
    Height Adjustment Automatic With Sensor.
    Media Feeding System Manual
    Operating System WINDOWS 7/WINDOWS 10
    Interface 3.0 USB
    Software Print Factory
    Languages Chinese/English
    Voltage 220V
    Power Consumption 1350w
    Working Environment 20-28 Degrees.
    Package Type Wooden Case
    Machine Size 2930*760*850mm
