A3 UV LED Printer with Single XP for Mobile Back Cover Pen Pop Socket Inkjet Flatbed Printing Machine

short description:

Automatic A3 inkjet printer flat printer is suitable for printing mobile phone case, label, card, photo, painting, u disk and so on.

It is widely used to print metal, wood, glass, PVC, acrylic, PVC, TPU, etc.


Product Detail

Product Tags

Name Digital UV Flatbed Printer UVA3
Model No. UVA3
Machine Type Automatic, Flatbed, UV LED Lamp, Digital Printer
Printer Head 1pcs XP600/TX800 Print Head
Max Print Size 11.81″*23.62” (30x60cm)
Max Print Height 180mm
Materials to Print Rotary , Metal, Plastic, Glass, Wood, Ceramics, Acrylic, Leather, etc,
Printing Method Drop-on-demand Piezo Electric Inkjet
Printing Direction Unidirectional Printing or Bi-directional Printing Mode
Printing  Resolution 1:720x720dpi_4pass   2:1440x720dpi_8pass      3:1440x1440dpi_16pass
Printing  Quality True Photographic Quality
Nozzle Number 1080
Ink Colors KCMYWW
Ink Type UV Ink
Ink Supply 100ml/Bottle
Printing  Speed A3:4pass+720*720+ Bi Direction+color+W +Eclosion70% :                      6’50”
A3:6pass+720×1080+ Bi Direction+color+W +Eclosion70% :                    9’23”
A3:8pass+720*1440+Bi Direction+color+W+Eclosion70%  :                     11’35”
150mm*160mm bottle:
4pass+720*720+UniDirection+color+W+Eclosion70% :                             2’14”
6pass+720*1080+UniDirection+color+WEclosion70% :                             2’54”
File Format PDF,JPG,TIFF,EPS,AI,etc
Height Adjustment Manual
Media Feeding System Manual
Max Media Weight 30 KG
Operating System WINDOWS 7/WINDOWS 8/WINDOWS 10
Interface USB
Software Maintop
Languages Chinese/English
Voltage 110V/ 220V
Power Consumption 100w
Working Environment 20-28 Degrees.
Package Type Wooden Case
Machine Size 680*600*650
Net Weight 45kg

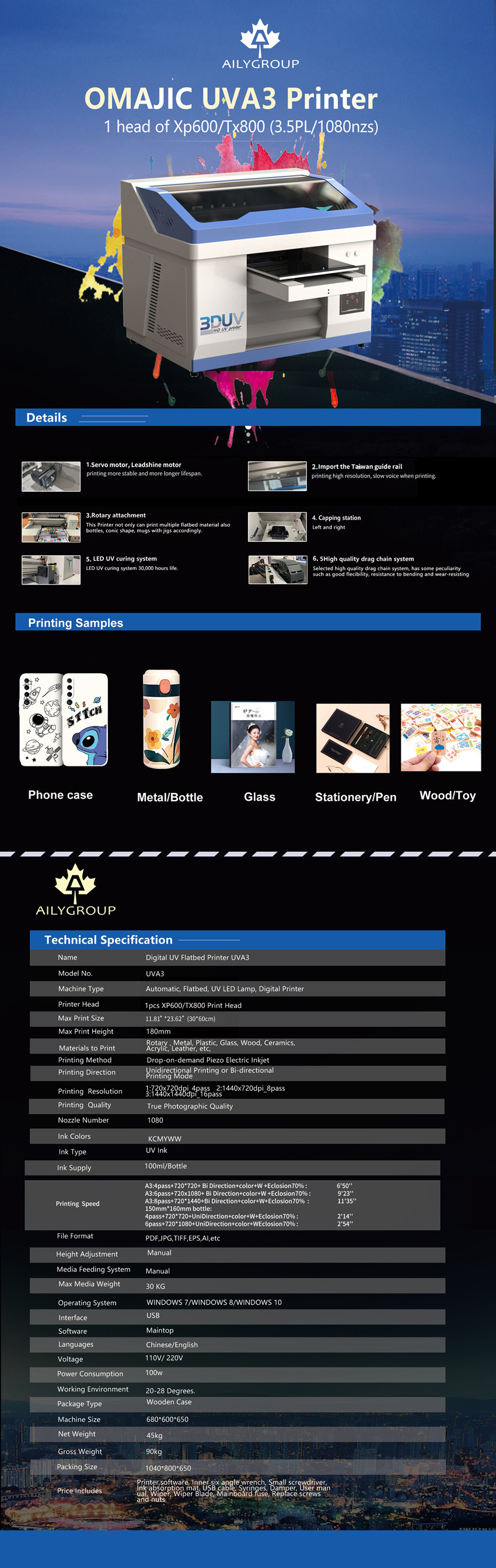

3060 UV catalog_副本
