Digital UV Flatbed Printer UV2513

short description:

UV2513 flatbed printer is a innovation,it equipped negative pressure system plus capping ,effective protection of printer head.Intelligent inkjet printing technology and vary dot ensure the perfect output,realized high solution.Equipped with EP-I3200-U1  printer head.Universal Printer: can print almost all flat items except textile.


  • Print head: 4pcs EP-I3200/DX5
  • Print speed: 4Pass 40sqm/h, 6Pass 30sqm/h
  • Universal Printer: can print almost all flat items except textile
  • Product Detail

    Technology Parameter

    Product Tags

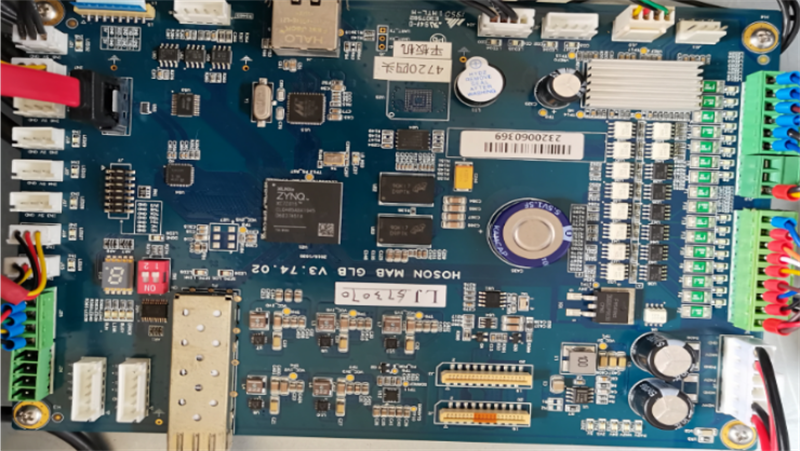

    1.Hoson Board

    Ensure stable and smooth operation and smooth printing

    Hoson board

    2.4 separate zones vacuum platform

    Separate operation zone makes accurate control to the vacuum platform.

    Vacumn platform

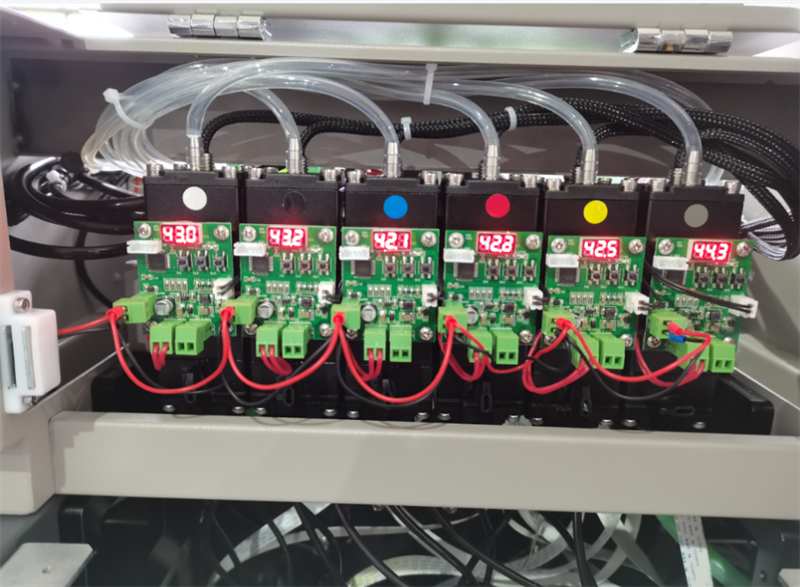

    3.Negative ink supply+capping

    Making sure high speed printing and stable ink supplying.

    Negative ink supply+capping

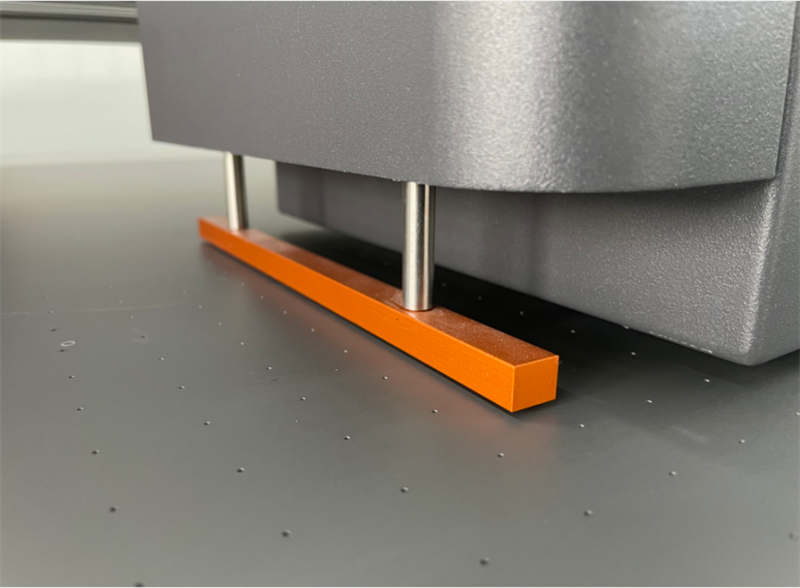

    4.Anti-collison

    This setting is protecting the printer head from hurting,so that the printer head have a longer time

    Anti-collison

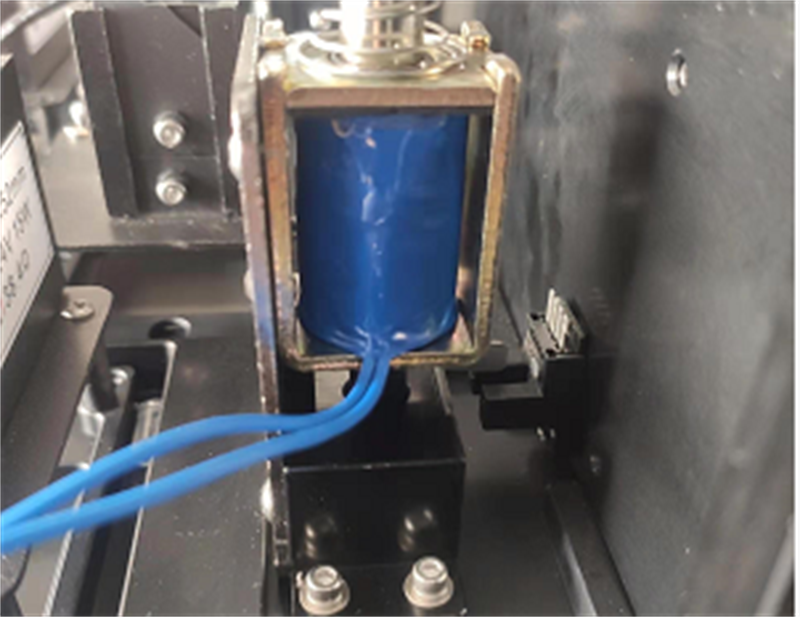

    5.Auto height detect

    5.Auto height detect

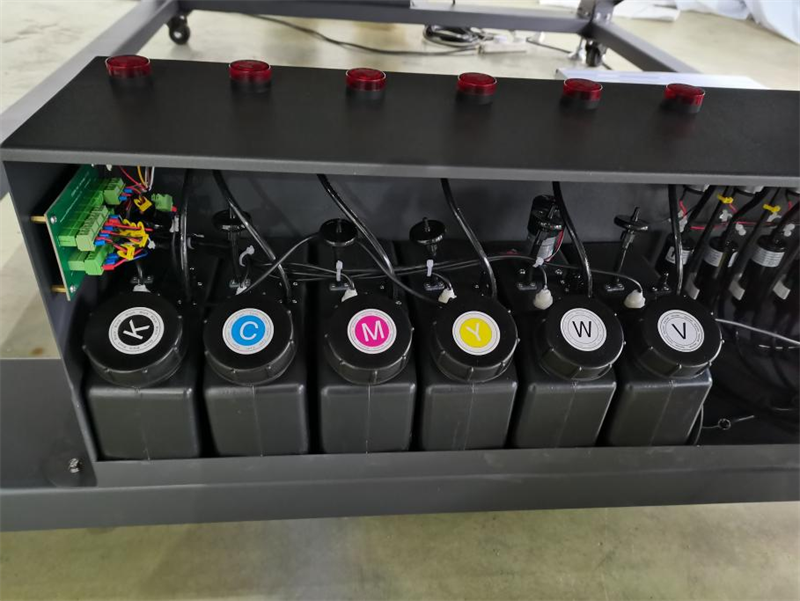

    6.Ink bulk alarm system

    Every color have individual ink lack alarm,to make customer easier figure out which color of ink is not enough.

    6.Ink bulk alarm system

    Applications

    Out doors photopaper

    Photo paper

    The textile industry

    The textile industry


  • Previous:
  • Next:

  • Model No. Eric 2513
    Printer head 3/4pc I3200-U1
    Machine Type Automatic, Flatbed, UV LED Lamp, Digital Printer
    Max Print Size  2500*1300mm
    Max Print Height 10cm
    Materials to Print Metal, Plastic, Glass, Wood, Ceramics, Acrylic, Leather, etc,
    Printing Direction Unidirectional Printing or Bi-directional Printing Mode
    Printing  Resolution Mode 1 :4Pass 1CMYK + 1W + 1V =3 heads ; speed 11Sqm/hMode 2 :4Pass 2CMYK + 2W =4 heads ; speed 19Sqm/hMode 3 :4Pass 4CMYK  =4heads ; speed 30Sqm/h
    Nozzle Number 3200
    Ink Colors CMYK+W+C
    Ink Type UV Ink
    Ink System 1500ml Ink Bottle
    File Format PDF,JPG,TIFF,EPS,AI,etc
    Max Media Weight 75 KG/M²
    Operating System WINDOWS 7/WINDOWS 8/WINDOWS 10
    Interface 3.0 LAN
    Software  Photoprint/Maintop
    Languages Chinese/English
    Voltage 220V
    Working Environment temperature :27℃ - 35℃, humidity:40%-60%
    Package Type Wooden Case
    Machine size 4100*10000*1350mm
