Digital uv led cylinder printer c180

short description:

1.Intelligent inkjet printing technology 360° seamless printing

2.Equipped with EP- I1600/XAAR1201/G5i  print heads

3.Color/w/v same time printing


Product Detail

Technology Parameter

Product Tags

High speed cylinder UV printer, 360°seamless printing, CMYK+W+ V same time printing equipped with the newest rotary printing technology

Details

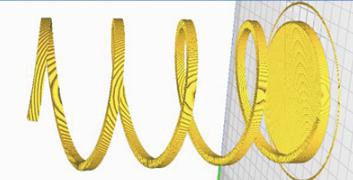

1.Sprial print

Gurantee the seamless prints.

gfdg

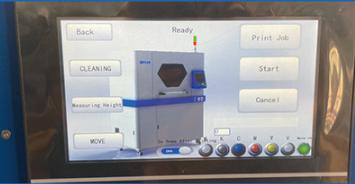

2.LCD touch screen HMI control

More intellegent for fast operating.

cdfvdg

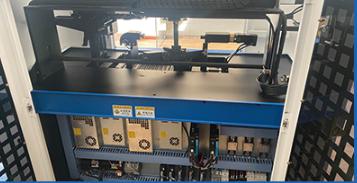

3.BYHX board

Supporting standby automatic cleaning function.

csdgf

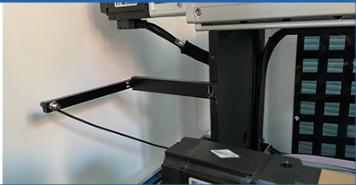

4.3 methods protecting printhead

Laser limit sensor for anti crash,light detect,media detect

cdvfgbfd

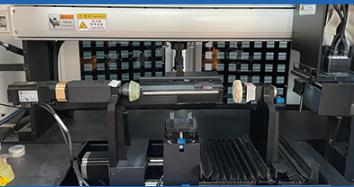

5.Seven-axis motor

Automatically controls all mechanical actions XYZ axis,ink stack up,fixture lifting,bottle clamping,platform tilt

cdsgfd

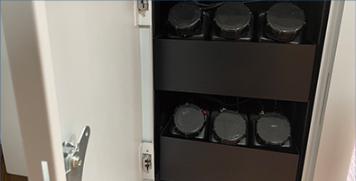

6.Refilled ink tank with alarm

Warning when ink shortage.

vfbn

Applications

ggrgd

Company Introduction

cdvfvg


  • Previous:
  • Next:

  • Model No. C180
    Printer head 3~4pcsXaar1201/RH-G5i/EP-I1600
    Machine Type Automatic, Digital Printer
    Media length 60-300mm
    Media diameter 1OD 40~150mm
    Materials to Print Various opaque cylinder materials
    Printing Direction 360° Printing
    Printing  Resolution L:200mm  OD: 60mm
    CMYK:          15second
    CMYK+W:       20second
    CMYK+W+V:    30second
    Max. Resolution 900x1800dpi
    Ink Colors CMYK+W+V
    Ink Type UV Ink
    Ink System 1500ml Ink Bottle
    File Format PDF,JPG,TIFF,EPS,AI,etc
    Operating System WINDOWS 7/WINDOWS 8/WINDOWS 10
    Interface 3.0 LAN
    Software Print Factory
    Languages Chinese/English
    Voltage 220V
    Working Environment temperature :27℃ - 35℃, humidity:40%-60%
    Package Type Wooden Case
    Machine size 1560*1030*180mm
