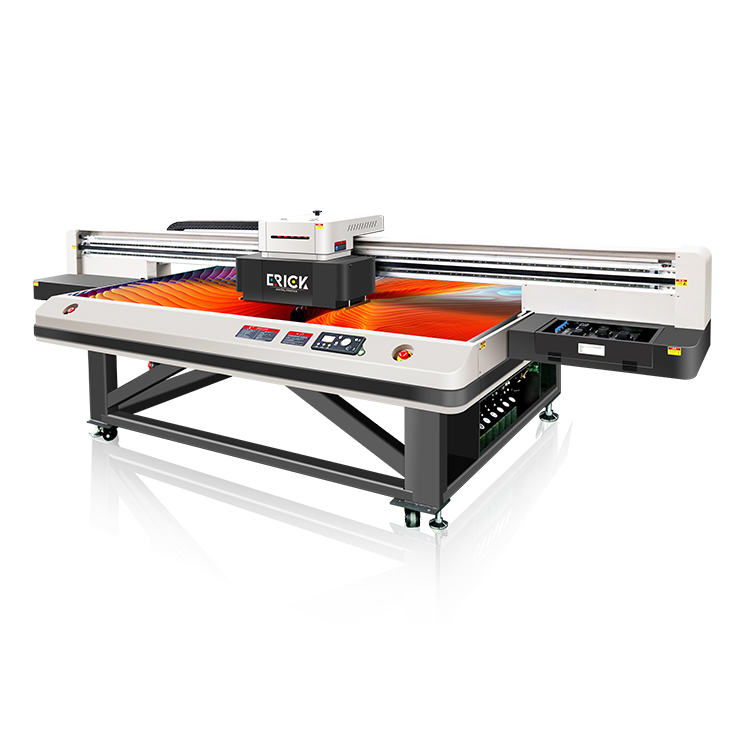

Large Format UV Flatbed Printer
Model No.
|
ER-UV 2513PRO
|
Printing Speed
|
I3200 UI:#Mode 1: CMYK+W+V 3 heads;
4 pass production speed 12-14sqm/h
#Mode 2: 2CMYK+2W 4 heads;
4 pass production speed 20-24sqm/h
#Mode 3: 4CMYK ;
4 pass production speed 50-60sqm/h
|

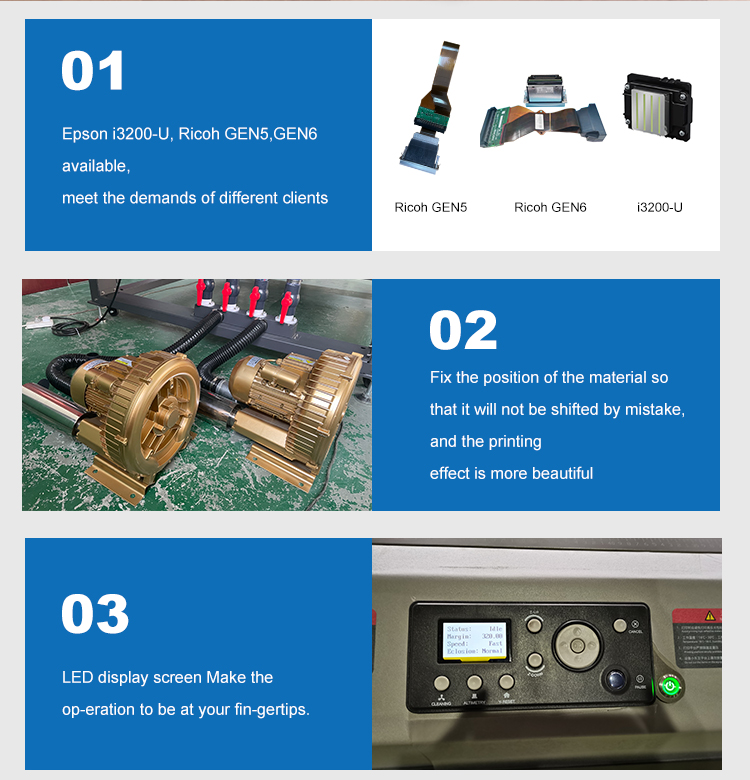

Printer Head
|
3/4pcs Epson I3200-U1/G5/G6 print heads
|
||
Max Print Size
|
98” * 51” (2500mm*1300mm)
|
Gen5: 4pass:Bi direction/Middle Feather—-16sqm/H
6pass:Bi direction/Middle Feather—-12sqm/H
|
|
Max Print Height
|
100mm
|
||
Nozzle Number
|
3200/1280
|
Gen6: 4pass:Bi direction/Middle Feather—-24sqm/H
6pass:Bi direction/Middle Feather—-18sqm/H
|
|
Board
|
Hoson
|
||
Ink Type
|
UV Ink
|
||
Ink Colors
|
CMYK+W+V
|
RIP software
|
Ripprint/Photoprint
|

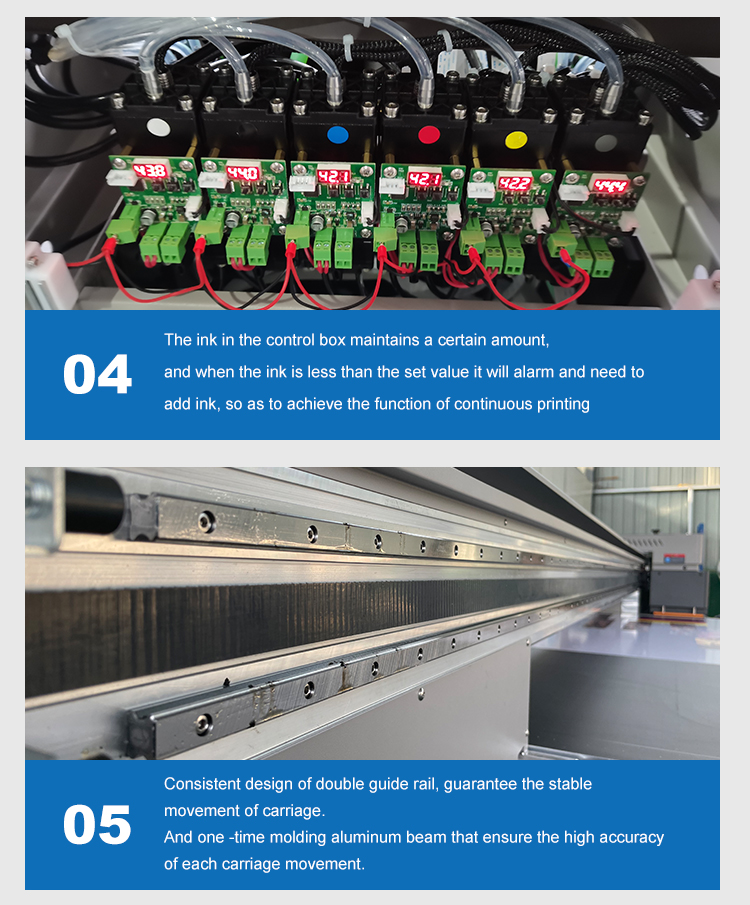

Ink Supply
|
1.5L ink tank and ink shortage alarm
|
Interface
|
LAN
|
Ink Damper
|
Heating Function to keep ink in good state
|
Working Environment
|
Temperature:18-28 Degrees,
Humidity:40%-60%
|
File Format
|
TIFF/JPEG/EPS/PSD/CDR/AI/CAD
|
Voltage
|
AC-220V/110V 50Hz/60Hz
|
Printing Quality
|
True Photographic Quality
|
Power Consumption
|
6000W
|
Printing Resolution
|
Standard Dpi: 720×1200dpi
|
Data transfer
|
LAN interface
|
Machine Motor
|
Leadshine Servo Motor
|
Machine Size
|
4100mm*2060mm*1400mm 850kgs
|
UV Lamp Cooling
Method
|
Water Cooling
|
Gross Weight
|
4240mm*2140mm*1000mm 1000kgs
|
