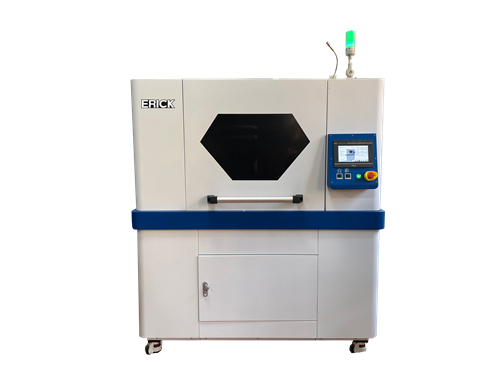

C180 UV Cylinder printing machine for bottle printing

With the improvement of 360° rotary printing and micro high jet printing technology, cylinder and cone printers are more and more accepted and applied in the packaging field of thermos, wine, beverage bottles and so on

C180 cylinder printer supports all kinds of cylinder, cone and special-shaped cup printing within 15mm drop can choose to carry Searle, Ricoh and print head, using white light oil synchronous output to achieve 360° seamless printing in 15 seconds, customized a thermos cup color or precision performance is excellent

微信图片_20220620160344_副本

Name High Speed Cylinder Printer
Model No. C180
Machine Type Automatic,  Digital Printer
Printer Head 3~4pcsXaar1201/Ricoh G5i/ I1600
Media length 60-300mm
Media diameter OD 40~150mm
Materials to Print Various opaque cylinder materials
Printing  Quality True Photographic Quality
Ink Colors CMYK+W+V
Ink Type UV LED Ink :Vivid color,Eco-friendly(Zero-VOC), Longer outdoor life
Color Management ICC Color curves and density management
Ink supply Automatic Negative Pressure system for Single Color
Ink Cartridges Capacity 1500ml/Color
Printing  Speed L:200mm  OD: 60mm
CMYK:              15second
CMYK+W:        20second
CMYK+W+V:    30second
File Format TIFF,EPS,PDF,JPG etc
Max. Resolution 900x1800dpi
Operating System WINDOWS 7/  WINDOWS 10
Interface 3.0 LAN
RIP Software Print Factory
Languages Chinese/English
white ink Automatic Stir and circualtion
Voltage AC 220V±10%, 60Hz, single phase
Power Consumption 1500w
Working Environment 25-28 ℃. 40%-70% Humidity
Package Size 1390x710x1710mm
Net Weight 420KGS
Package Type Wooden Case
Package Size 1560*1030*180mm
Gross Weight 550KGS
