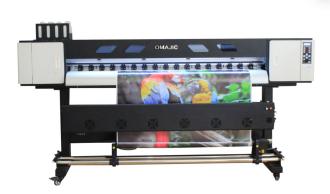

China Professional Design Ink Catrege Eco Solvent Rf 640 - OMJIC 1801 6 feet eco solvent printer can be equipped with: one pcs XP600/DX5/DX7/I3200 – Aily factory and manufacturers

Professional Design Ink Catrege Eco Solvent Rf 640 - OMJIC 1801 6 feet eco solvent printer can be equipped with: one pcs XP600/DX5/DX7/I3200 – Aily

short description:

Product Detail

Product Tags

Feedback (2)

To be the stage of realizing dreams of our employees! To build a happier, far more united and far more specialist team! To reach a mutual profit of our customers, suppliers, the society and ourselves for Eco Solvent Printer Free Shipping , Imprimante Eco Solvent Xp600 , H1808 Eco Solvent , We are sincere and open. We look forward to your visit and establishing trustworthy and long-term standing relationship.

Professional Design Ink Catrege Eco Solvent Rf 640 - OMJIC 1801 6 feet eco solvent printer can be equipped with: one pcs XP600/DX5/DX7/I3200 – Aily Detail:

Model: OM1801

Brand: OMAJIC

Model: Yulan’s new photo machine 1801

Color classification: OMAJIC1801 Single Head New Fifth Generation (XP600) OMAJIC1601 Single Head New Fifth Generation (XP600) OMAJIC1801 Single Head 3200 Machine OMAJIC1801 Single Head Fifth Generation (DX5) OMAJIC1801 Single-headed (DX7) OMAJIC1802 double-headed new fifth generation (XP600) OMAJIC1802 double-headed new fifth generation (XP600) OMAJIC1802 double-headed 3200 machine OMAJIC1802 double-headed fifth generation (DX5) OMA JIC1802 Double Head (DX7) Personalized Customization Machine Deposit Machine Sample

Print valid width: 136 columns

Ink color: 4 colors

Weight: 220kg

Size: 2360x730x1500mm

Type of ink: oily ink/water-based

Number of nozzles: Multiple nozzles

Media material: Photo material Printing accuracy: 3200

Product Parameter
Model：		OM 1801
Printhead：		one pcs XP600/DX5/DX7/I3200
Rip software：		Maintop6.0
	NO			Parameter
Parameter	1		Printhead life time	6-12months
	2		Maximum printing width	1750mm
	3		Color	CMYK
	4		(4/6/8/pass)Printing speed	4 pass :17m2/h 6 pass :12m2/h 8 pass :9m2/h
	5		Pirnt resolution	4 pass :720600dpi 6pass:720900dpi 8pass :720*1200dpi
	6		Print material	PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc.
	7		Printing height	2-5mm adjustable
	8		Quantity of roller pin	14
	9		Rip software	Maintop6.0/ Photoprint
	10		Supply voltage,Power	220V
	11		Image format	TIFF, JPEG,JPG,PDF,etc.
	12		Operation environment	temperature :27℃ - 35℃, humidity:40%-60%
	13		Aviable ink	eco solvent ink
	14		Consumble of ink for 1sqm(CMYK)	250sqm
	15		Interface type	Lan
	16		Board type (brand)	Senyang
	17		Rail brand	Hiwin
	18		Servo Motor Brand	JMC
	19		Ink tank capacity / waste ink tank capacity	1.2L / 1L
	20		Ink stack drawing method	Lifting ink stack
	21		Ink supply system	Positive and negative supply ink
	22		Beam material	Aluminum
	23		Printer size	2638mm510mm700mm
	24		Packing size	2715mm730mm700mm
Function	25		Standard spare parts package	with
	26		Warranty	1 year(except printhead)
	27		Automatic height	with
	28		Anti rubbing material switch	with
	29		Heating system	Front platform heating exterior fan and infrared heater
	30		Additional function	Alarm of short ink Alarm of full of waste ink Alarm of paper shortage
	31		Take-up system	Single motor take-up system(Standard)
	32		Protection of printhead	Automaticlly cleaning system

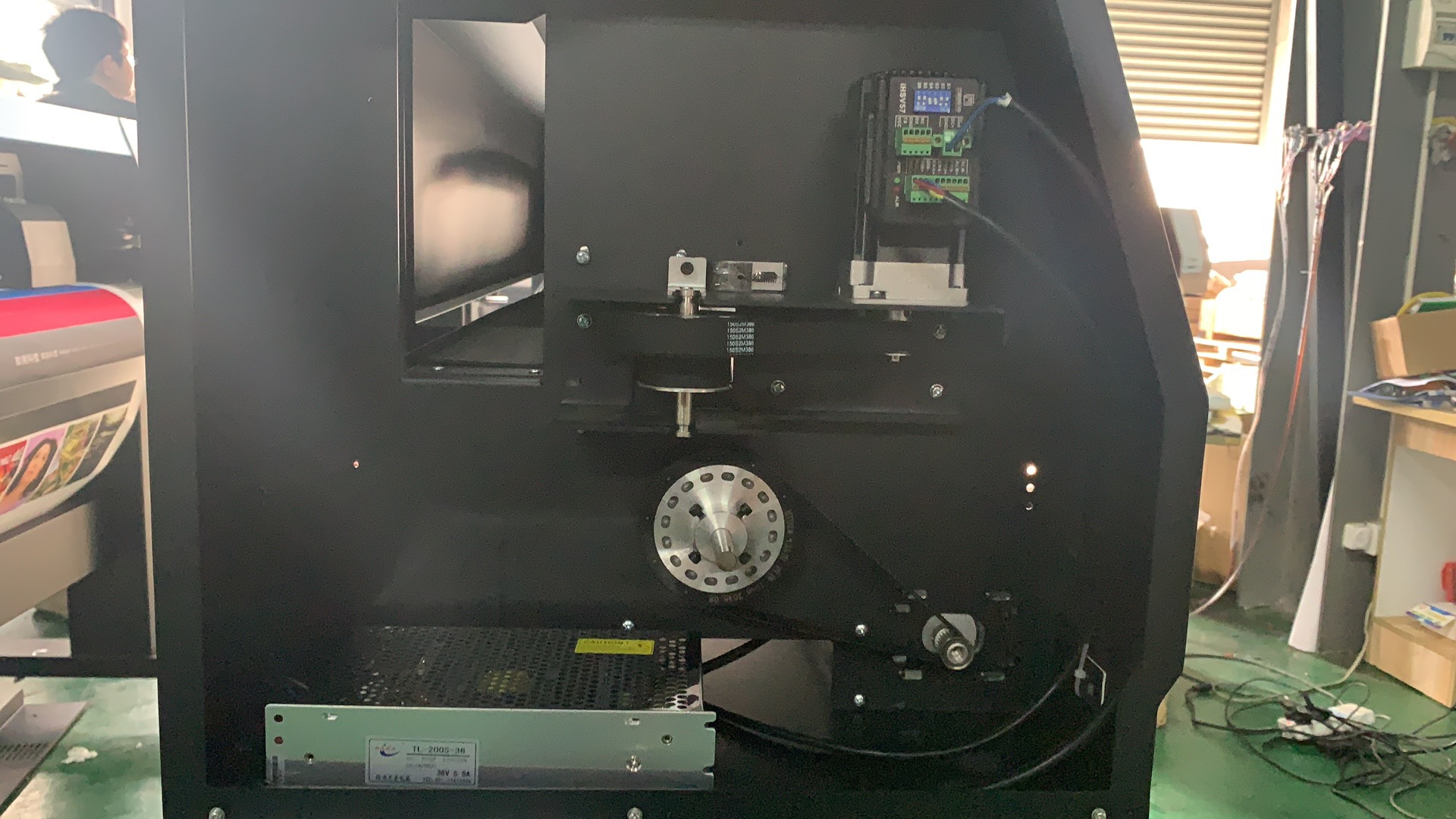

Raysay servo motor:

It can work efficiently for a long time and provides the stability of the whole machine, and can continue to work steadily after working for more than 8 hours a day.

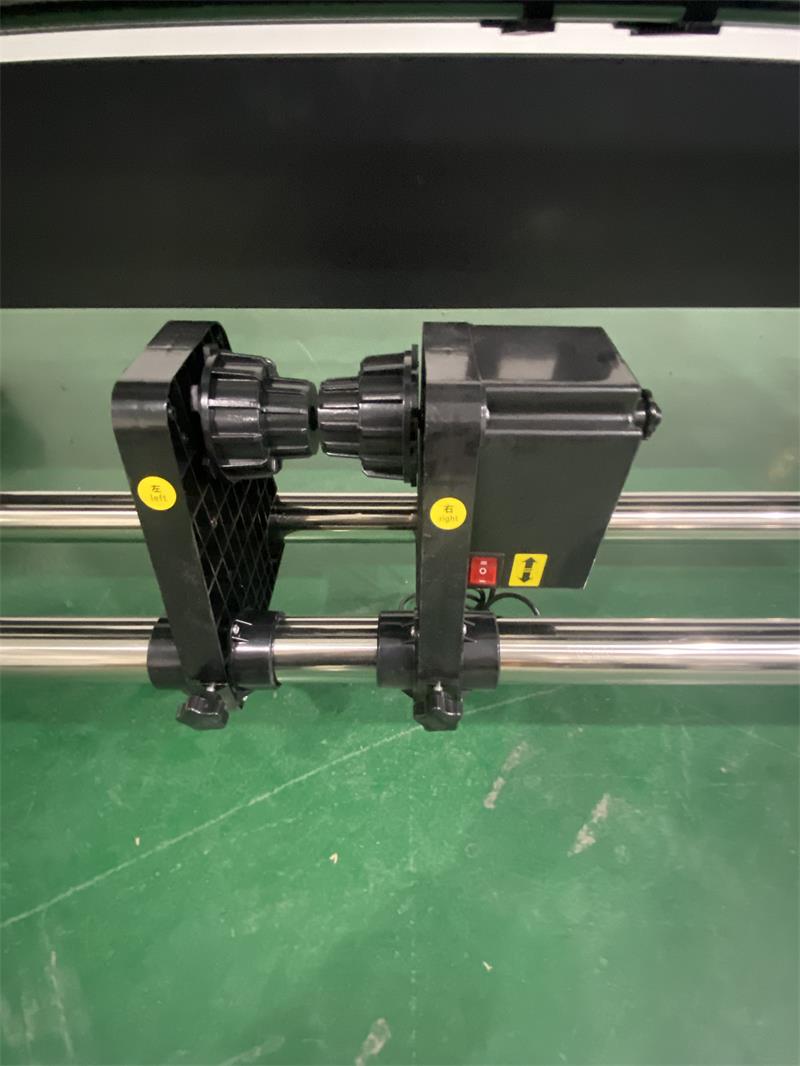

Paper storage system:

After the coil is placed, the paper can be automatically printed, and the mechanized production can be completed with the front paper collector, which can save most of the labor.

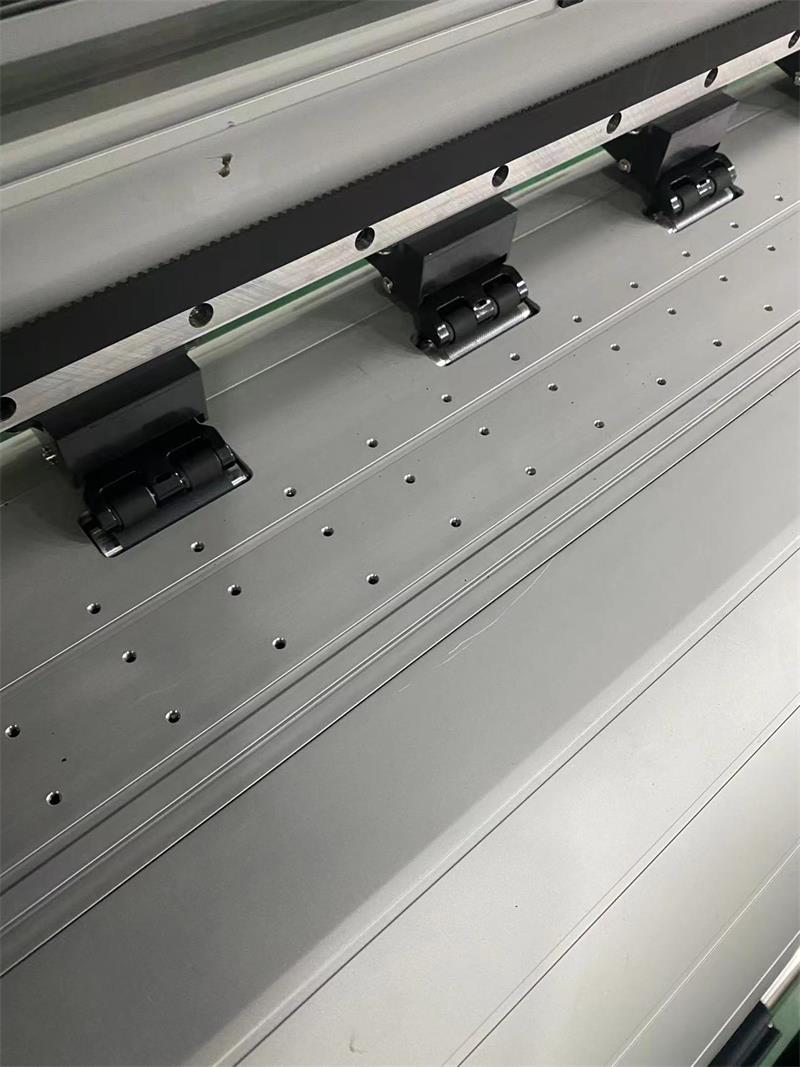

Suction platform:

It can effectively prevent arch paper or deviation from the printing process with fixed materials, and realize a completely intelligent platform Foundation

Paper press wheel:

It can cooperate with the paper collection system to transmit printing materials, and better fixed paper and transmission have a whole row of adjustable functions.

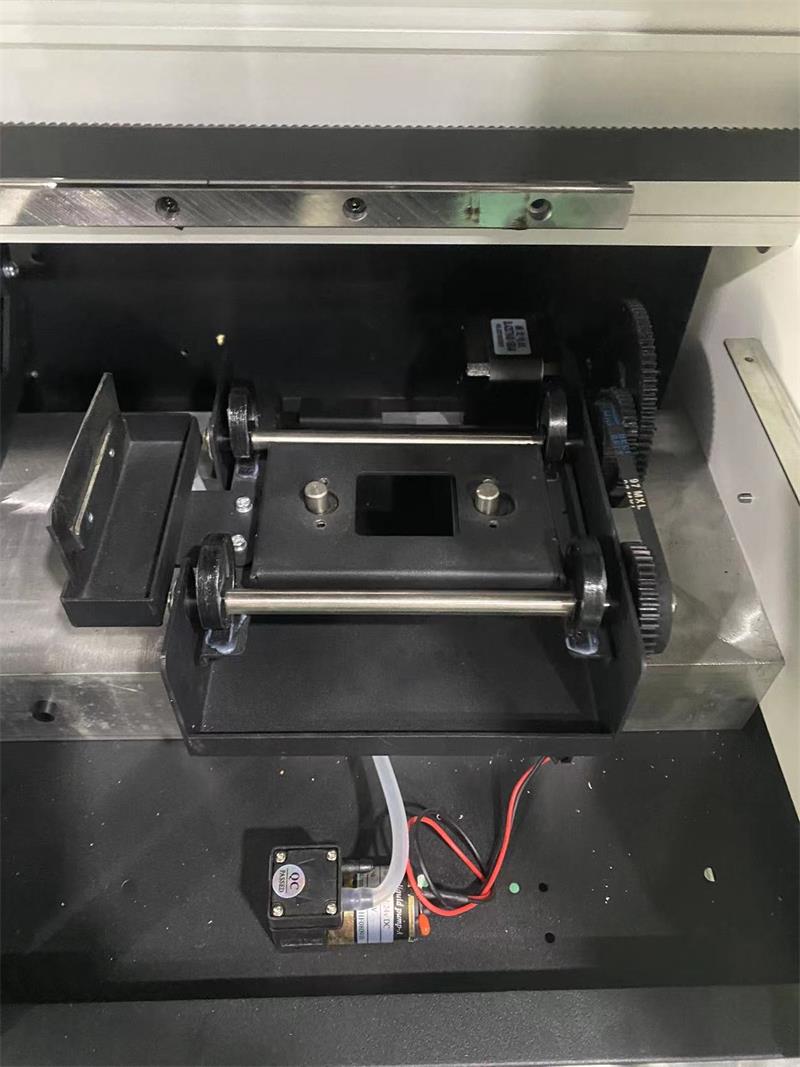

Automatic lifting ink stack:

Advantages: Simple operation (second-class ink cartridge ink supply to the ink stack) ink pump ink pump positive pressure continuous ink supply, you can use an ink absorbent pad during cleaning to suck out the ink to make it smooth.

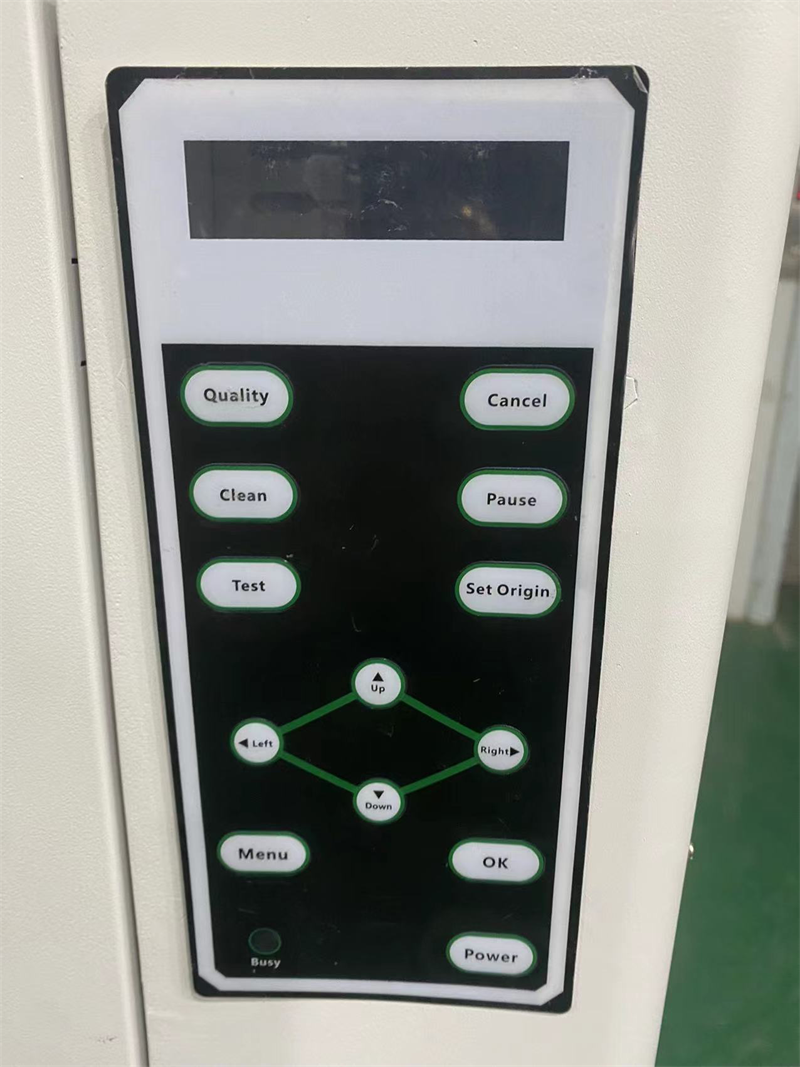

Control panel:

Simple and easy to operate can use the machine quickly and smoothly, and can provide you with a simple mobile guide

Application

Product detail pictures:
