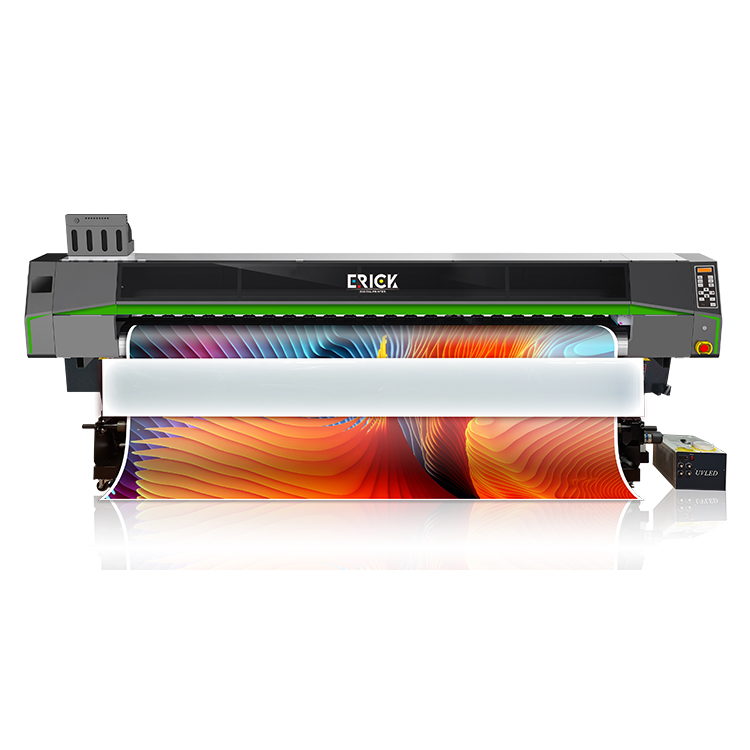

Roll To Roll Uv Printer

short description:

Roll-to-roll UV printers have revolutionized the printing industry in recent years. These printers, such as the ER-UR 3204 PRO with 4 Epson i3200-U1 printheads, offer significant advantages in terms of efficiency, speed and quality.

First and foremost, roll-to-roll UV printers can print continuously on a variety of materials. Whether it’s vinyl, fabric, or paper, these printers can handle it. With advanced technology, they ensure accurate and even printing without any smudging or fading.

The ER-UR 3204 PRO is a prime example of roll to roll UV printer that provides excellent printing results. Equipped with four Epson i3200-U1 printheads, the printer delivers high-speed printing without compromising quality. The printheads are known for their precision, producing crisp, vibrant images with every print.


Product Detail

Product Tags

Detail-01 Detail-02 Detail-03

Model No.
ER-UR3204PRO
Printing Speed
4 heads I3200 speed:
2Pass: 150 sqm/h
4Pass: 80 sqm/h
6Pass: 55 sqm/h
Printer Head
4 pcs Epson i3200 U1 Print Head
Max Media Weight
60 KG
Max Print Size
125.98” (3200mm)
Operating System
WINDOWS 7/ WINDOW 10
Max Print Height
1-5mm
Interface
LAN
Printing Resolution
Standard Dpi: 1440*2880dpi
Software
Maintop/Photoprint
Control system
Hoson
Voltage
AC-220V 50Hz/60Hz
Nozzle Number
3200
Working Environment
15-30 Degrees.
Ink Colors
CMYK+W
Power Consumption
8500W
Ink Type
UV Ink
Package Type
Wooden Case
Ink Supply
2.5 L ink tank with positive pressure
continous supply
Machine Size
4424*907*1530(H)mm
File Format
TIFF,JPEG,Postscript,EPS,PDF
Net Weight
750kgs
Media Feeding System
Manual
Gross Weight
840kgs
Printing Quality
True Photographic Quality
Packing Size
4500*1000*1550((H)mm
Materials to Print
PP Paper/Backlit fifilm/Wall paperlvinyl
One-way vision/Flex banner etc

Roll To Roll Uv PrinterDetail-12 Detail-13 Detail-15 Detail-14 Detail-16 Detail-17 Detail-18 Detail-19
