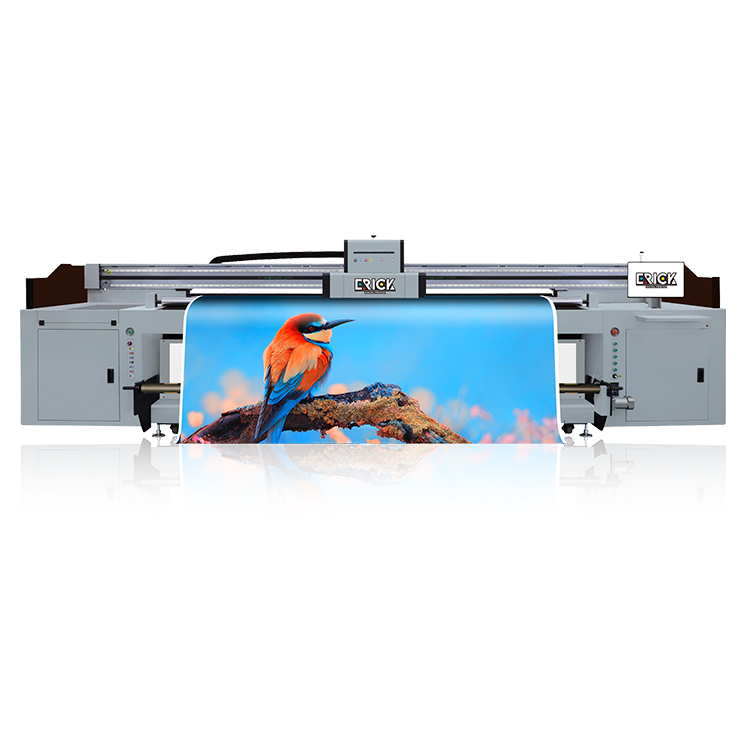

Roll To Roll Uv Printing Machine

short description:

ER-UR 3208PRO provides excellent performance and excellent printing results with advanced technology and high-quality components. The choice of printheads such as Konica 1024i, Konica 1024A, Ricoh G5 or Ricoh G6 ensures excellent precision and speed during printing.

A distinct advantage of the ER-UR 3208PRO is its roll-to-roll capability. This allows continuous printing on rolls of material without the need for separate sheets. The machine is equipped with a motorized system that handles the seamless movement of material, ensuring consistent and accurate printing across the entire web.

The UV printing technology adopted by ER-UR 3208PRO has many advantages. UV inks dry instantly when exposed to UV light, requiring no additional drying time. This enables faster production speeds and increases productivity. Plus, UV inks are extremely durable, fade and scratch resistant for long-lasting and vibrant prints.


Product Detail

Product Tags

Detail-01Detail-02Detail-03

Model No.
ER-UR3208PRO
Printing Speed
1. Konica 1024i 6PL
Exterior light full color(8pass):64sqm/h
Exterior light full color(6pass):88sqm/h
interior light production model(8pass):40sqm/h
Printer Head
Konica 1024i/1024A/Ricoh G5/Ricoh G6
Max Print Size
3200mm
2. Konica 1024i 13PL
Exterior light full color(6pass):96sqm/h
Exterior light full color(8pass):72sqm/h
interior light production model(6pass):58sqm/h
interior light production model(8pass):48sqm/
Max Print Height
10mm
Printing Resolution
726*2160 dpi
UV curing system
LG led-uv curing system
3. Konica 1024A 6PL
Exterior light full color(6pass):96sqm/h
Exterior light full color(8pass):72sqm/h
interior light production model(6pass):58sqm/h
interior light production model(8pass):48sqm/h
Printing Materials
Light box,car sticker,3p cloth,kt board,
pvc board,acrylic etc.
Ink Colors
CMYK+Lc+Lm+Lk+W+V
Ink Type
UV Ink
Color system
ICC
File Format
Bmp,TIF,TPG,PDF,EPS
Working Environment
20℃-30℃,humdity 30-65%
Server Motor
Leadshine 750W motor
Languages
Chinese/English
Rip Software
Printfactory
Voltage
AC220V,60hz,4500w
Main Board
BYHX
Machine Size
5406*1475*1615mm; 2000kg
Ink supply confifiguration
Negative,Secondary continuous
supply,ink shortage alarm
Packing Size
5606*1675*1850mm; 2100kg

Roll To Roll Uv Printing Machine

Detail-12 Detail-13 Detail-14 Detail-15 Detail-16 Detail-17 Detail-18 Detail-19
