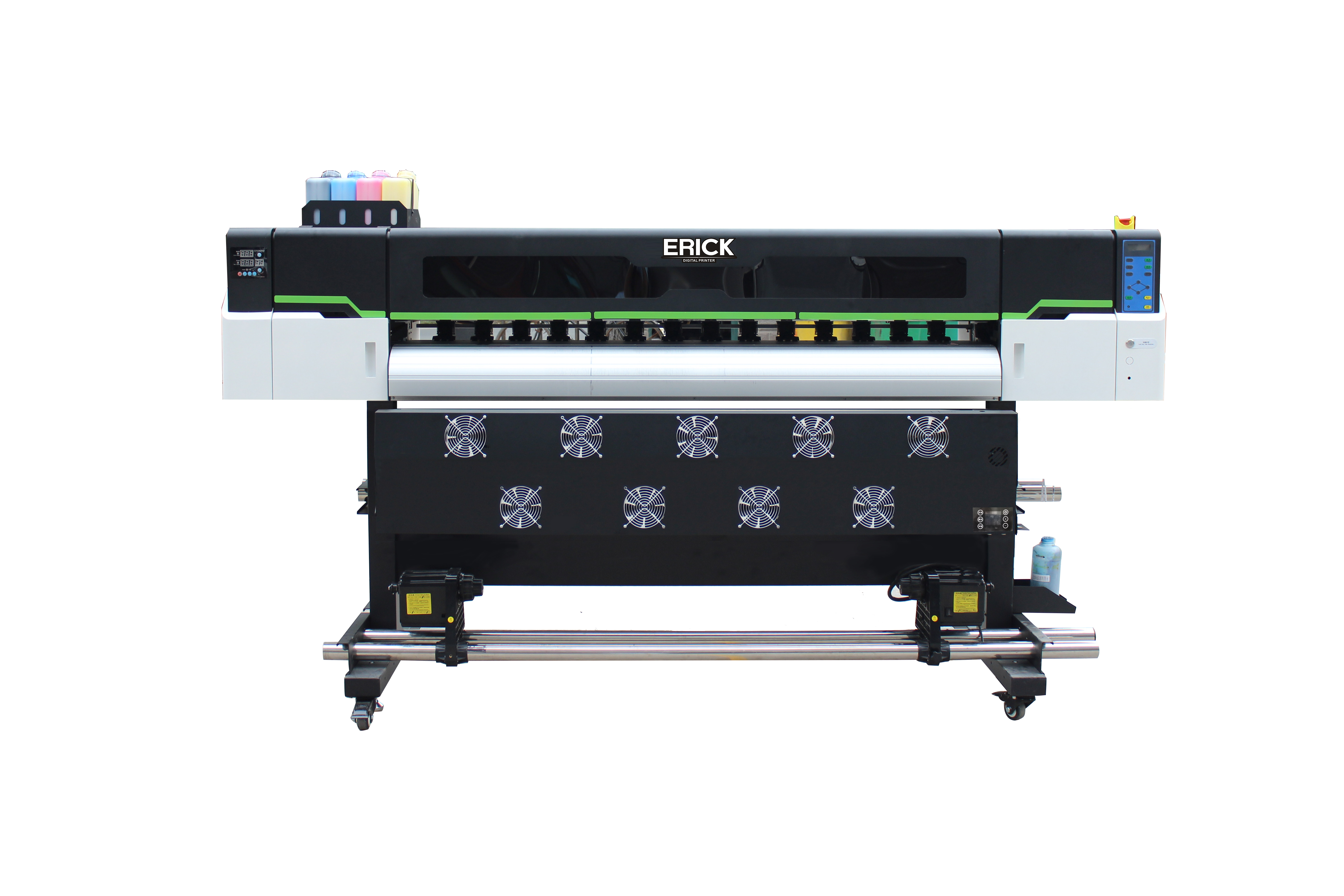

UV1802 Pro Stable 6 feet eco solvent printer for posters and stickers

short description:

Erick new design 6 feet eco solvent printers with postive pressure ink supply and double Xp600/DX5/I3200 printhead,suitable for entry level customers,are you want to start printing business but worry for high cost?this machine uses lower cost and it can match your daily production for new step.Come to contact!


Product Detail

Technology Parameter

Product Tags

Now it is a tough time that shipping fee rising,because of Covid last 3 year,the end-user customers must spend higher money to get machines.So we bring this 6 feet eco solvent printer with lower cost.And machine quality and printing is also stable,you can choose either Xp600/I3200/DX5 to equip with more flexiable.

Product Parameter

Model OM 1802 ER-1802

Printhead two pcs XP600/DX5/DX7/I3200
Rip software Maintop6.0



NO



Parameter

Parameter

1

Printhead life time 6-12months

2

Maximum printing width 1750mm

3

Color CMYK

4

(4/6/8/pass)Printing speed 4 pass :17m2/h
6 pass :12m2/h
8 pass :9m2/h

5

Pirnt resolution 4 pass :720*600dpi   6pass:720*900dpi  8pass :720*1200dpi

6

Print material PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc.

7

Printing height 2-5mm adjustable

8

Quantity of roller pin 14

9

Rip software Maintop6.0/ Photoprint

10

Supply voltage,Power 220V

11

Image format TIFF, JPEG,JPG,PDF,etc.

12

Operation environment temperature :27℃ - 35℃, humidity:40%-60%

13

Aviable ink eco solvent  ink

14

Consumble of ink for 1sqm(CMYK) 250sqm

15

Interface type Lan

16

Board type (brand) Senyang

17

Rail brand Hiwin

18

Servo Motor Brand JMC

19

Ink tank capacity / waste ink tank capacity 1.2L     /  1L

20

Ink stack drawing method Lifting ink stack

21

Ink supply system Positive and negative supply ink

22

Beam material Aluminum

23

Printer size 2638mm*510mm*700mm

24

Packing size 2715mm*730mm*700mm

Function

25

Standard spare parts package with

26

Warranty 1 year(except printhead)

27

Automatic height with

28

Anti rubbing material switch with

29

Heating system Front platform heating  exterior fan and infrared heater

30

Additional function Alarm of short ink    Alarm of full of waste ink  Alarm of paper shortage

31

Take-up system Single motor take-up system(Standard)

32

Protection of printhead Automaticlly cleaning system

Application field


  • Previous:
  • Next:

  • Model No. OM1801
    Printer head 2pcs XP600/DX5/DX7/I3200
    Machine Type Automatic, Roll to Roll, Digital Printer
    Max Print Size 1750mm
    Max Print Height 2-5mm
    Materials to Print PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc.
    Printing Direction Unidirectional Printing or Bi-directional Printing Mode
    Printing  Resolution 4 Pass 17Sqm/h6 Pass 12Sqm/h8 Pass  9Sqm/h
    Nozzle Number 3200   i3200
    Ink Colors CMYK
    Ink Type Eco solvent Ink
    Ink System 1200ml Ink Bottle
    File Format PDF,JPG,TIFF,EPS,AI,etc
    Operating System WINDOWS 7/WINDOWS 8/WINDOWS 10
    Interface  LAN
    Software  Photoprint/Maintop
    Languages Chinese/English
    Voltage 220V
    Working Environment temperature :27℃ - 35℃, humidity:40%-60%
    Package Type Wooden Case
    Machine size 2638*510*700mm
