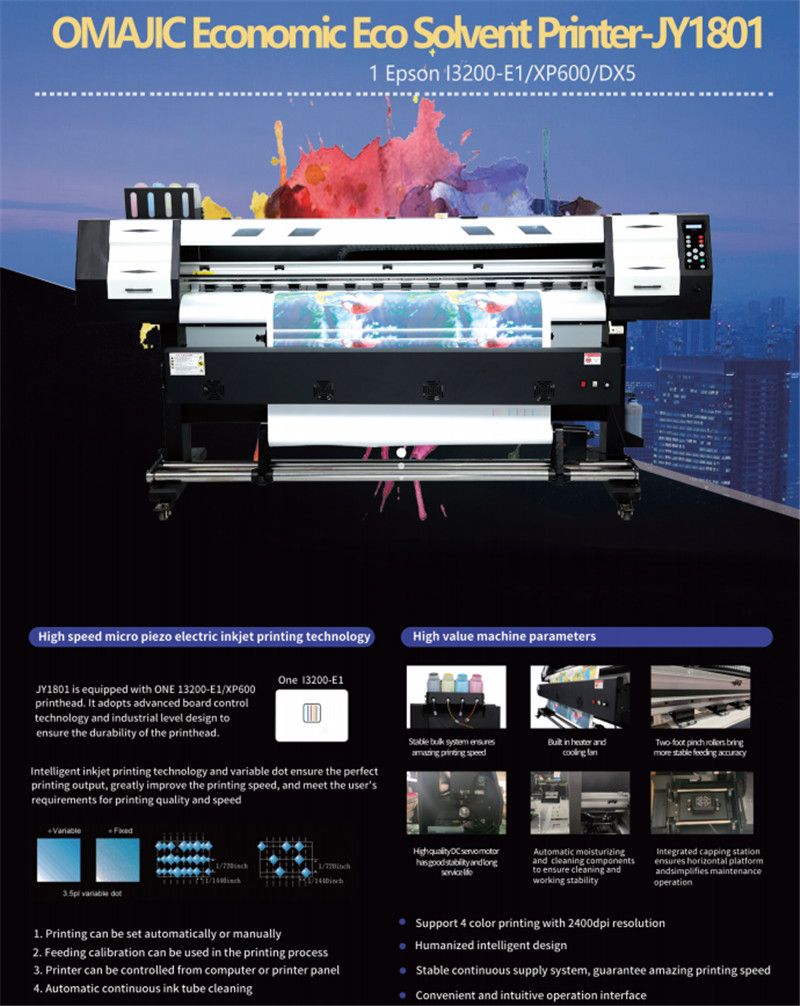

i3200/XP600/DX5 Eco Solvent Printer Brochure

short description:

 Eco Solvent  Printer

1. Using 1pc  i3200/XP600/DX5 Printer Head: High precision & Stability, Easy to maintain, Faster speed;
2. Print Head Carriage Auto Height Detective: Protect well of the printer head;
3. Stable bulk system ensures,amazing printing speed;
4.Built in heater and cooling fan;
5. Print KCMY at the same time;
6. Three foot pinch rollers bring more stable feeding accuracy;
7.High quality DC servo motor has good stability and long service life;
8. Automatic moisturizing and cleaning components to ensure cleaning and working stability;
9. Milling  Beam and HIWN Guide Make stable and Precision Movement;
10. lntegrated capping station ensures horizontal platformand simplifies maintenance operation.


Product Detail

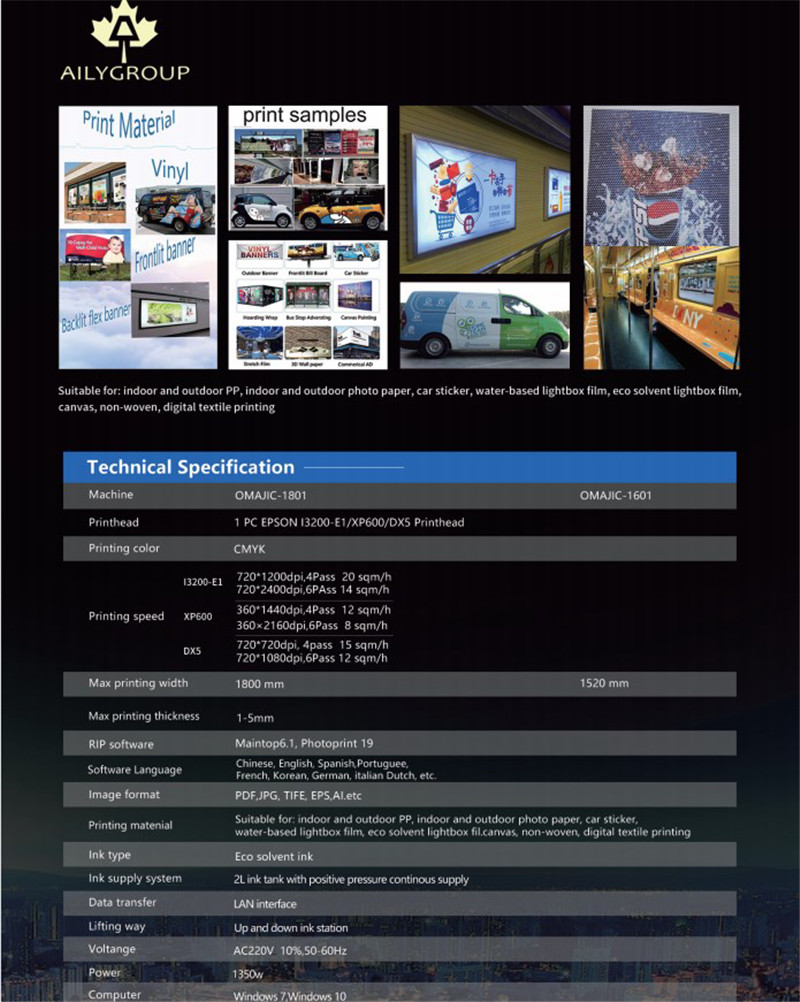

Machine Specification

Product Tags

JY1801 With 1  i3200/XP600/DX5 Eco Solvent  Printer Brochure
D3 capping station
D4 carriage cover
D5 vacuum platform with Hiwin trail
JY1801 With 1  i3200/XP600/DX5 Eco Solvent  Printer Brochure

 1.8m Format Eco Solvent Printer JY1801 1802  1.8m Format Eco Solvent Printer JY1801 1802

About this item

We Can Provide Customized Production and Packing for You!
Gain Permanent Warranty On Your Large Format Printer With Continuously Ink Order.
We Provide FREE Training For Our Clients! Even Can Send Engineer To Oversea Local Customer!
We Also Provide FREE Printing Samples For You!
The Most Important We Have Digital Printing Solution Ability! We Have Provided Many Digital Inkjet Printing Solutions for Over 30 Clients Per Year! Some of Them are Very Famous Printing Company!


  • Previous:
  • Next:

  • Name JY1801 Eco Solvent  Printer
    Model No. JY1801 Eco Solvent  Printer
    Machine Type Automatic, Flatbed, Heavy Body, Digital Printer
    Printer Head 1 Epson i3200/XP600/DX5 Print Head
    Max Print Size 70” (180cm)
    Max Print Height 1-5mm
    Materials to Print PP Paper/Backlit film/Wall paperlvinylOne-way vision/Flex banner etc
    Printing Method Drop-on-demand Piezo Electric Inkjet
    Printing Direction Unidirectional Printing or Bi-directional Printing Mode
    Printing  Resolution Standard Dpi: 720×1200dpi
    Printing  Quality True Photographic Quality
    Nozzle Number 1440
    Ink Colors CMYK
    Ink Type Eco Solvent Ink
    Ink System CISS Built Inside With Ink Bottle
    720*1200dpi 4pass C/M/Y/K=16ml/sqm
    720*2400dpi 6pass C/M/Y/K=25ml/sqm
    Ink Supply 2L ink tank with positive pressure continuos supply (Bulk ink system)
    Printing  Speed l3200-E1  720*1200dpi,4Pass 20 sqm/h, 720*2400dpi,6 Pass 14 sqm/h               XP600    360*1440dpi,4Pass 12 sqm/h ,360×2160dpi,6 Pass 8 sqm/h               DX5      720*720dpi,4pass 15 sqm/h, 720*1080dpi,6 Pass 12 sqm/h
    File Format PDF,JPG,TIFF,EPS,AI,etc
    Height Adjustment Automatic With Sensor.
    Media Feeding System Manual
    Max Media Weight 30 KG
    Operating System WINDOWS 7/WINDOWS 8/WINDOWS 10
    Interface 3.0 LAN
    Software PhotoPrint/Ripprint
    Languages Chinese/English
    Voltage 110V/ 220V
    Power Consumption 1350w
    Working Environment 20-28 Degrees.
    Package Type Wooden Case
    Machine Size 2827*770*1478mm
    Net Weight 200kg
    Gross Weight 240kg
    Packing Size 2910*710*720mm
    Price Includes Printer,software, Inner six angle wrench, Small screwdriver, Ink absorption mat, USB cable, Syringes, Damper, User manual, Wiper, Wiper Blade, Mainboard fuse, Replace screws and nuts
