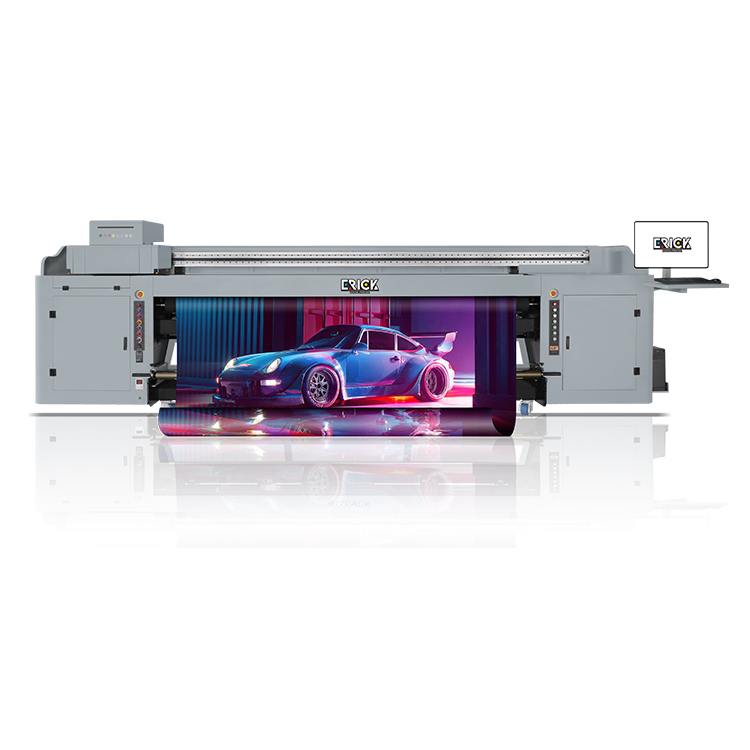

UV Double Side Printer

short description:

In today’s fast-paced and highly competitive printing industry, UV double-sided printers have gained enormous popularity due to their ability to provide high-quality printing on both sides of the substrate. One of the printers making a splash in the market is the ER-DR 3208 Konica 1024A/1024i with 4~18 print heads. This advanced printer boasts cutting-edge technology and impressive features that set it apart from its competitors.

The ER-DR 3208 is equipped with excellent UV duplex printing capabilities, allowing businesses to print on both sides of a substrate simultaneously. This eliminates the need to manually flip the material, reducing production time and costs. Whether you’re printing on paper, plastic, glass or even metal, this printer delivers vivid, detailed images with exceptional precision and accuracy.

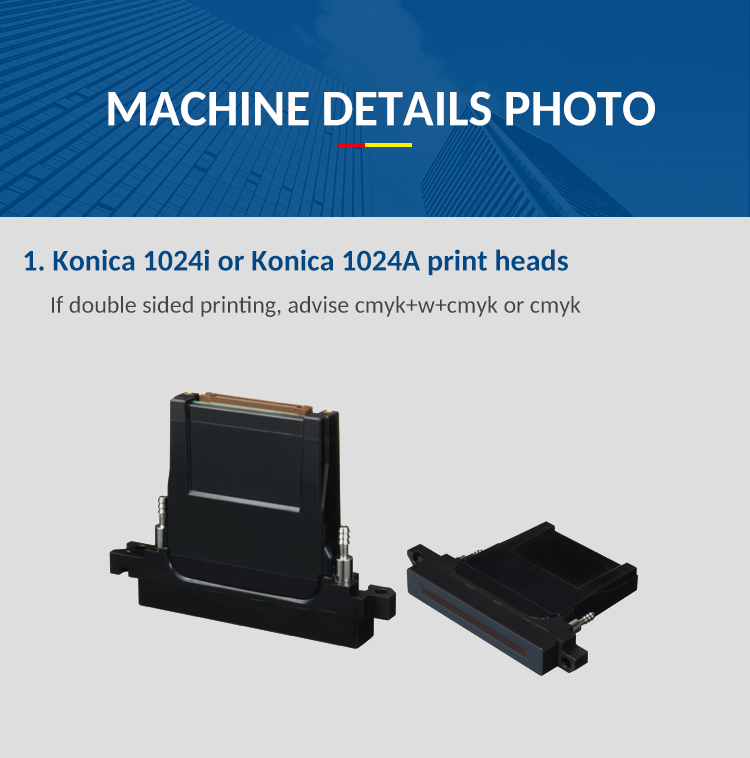

One of the outstanding features of ER-DR 3208 is that it integrates 4~18 heads Konica 1024A/1024i. Known for their exceptional performance, these printheads offer high-speed and high-resolution printing capabilities. With advanced nozzle control technology, they ensure consistent ink drop size and placement, resulting in crisp and vibrant prints. A multi-head configuration increases productivity and efficiency, making this printer ideal for large printing projects.


Product Detail

Product Tags

Detail-01 Detail-02 Detail-03

Model No
ER-DR3208
Printing Speed
1.3 rows Konica 1024i 6PL
Exterior light full color(6pass):100sqm/h
interior light production model(6pass):60sqm/h
interior light sample model(8pass):45sqm/h
Color white color:34sqm/h
Printer Head
4~18 heads Konica 1024A/1024i
Max Print Size
3200mm
Max Print Height
100mm
2.3 rows Konica 1024i 13PL
Exterior light full color(6pass):120sqm/h
interior light production model(6pass):75sqm/h
interior light sample model(8pass):57sqm/h
Color white color:40sqm/h
Printing Resolution
360*720\720*720\720*1080\720*1440
Printing Method
Drop-on-demand Piezo Electric Inkjet
Printing Direction
Unidirectional Printing or Bi-directional
Printing Mode
3.3 rows Konica 1024A 6PL
Exterior light full color(6pass):120sqm/h
interior light production model(6pass):75sqm/h
interior light sample model(8pass):57sqm/h
Color white color:40sqm/h
Ink Colors
CMYK+W+V
Ink Type
UV Ink
Voltage
220V
File Format
PDF,JPG,TIFF,EPS,AI,etc
Working Environment
temperature :27℃ – 35℃, humidity:40%-60%
Software
Printfactory/SAi PhotoPrint
Power Consumption
4000W
Operating System
WINDOWS 7/ WINDOW 10
Package Type
Wooden Case
Printing Quality
True Photographic Quality
Machine Size
5750*1250*1750mm; 2500kg
Interface
3.0 USB
Packing Size
5950*1450*1950mm; 3000kg

Uv Double Side PrinterDetail-05 Detail-06 Detail-07Detail-02Detail-12 Detail-13 Detail-14 Detail-15 Detail-16 Detail-17 Detail-18 Detail-19
