Uv Hybrid Printer

short description:

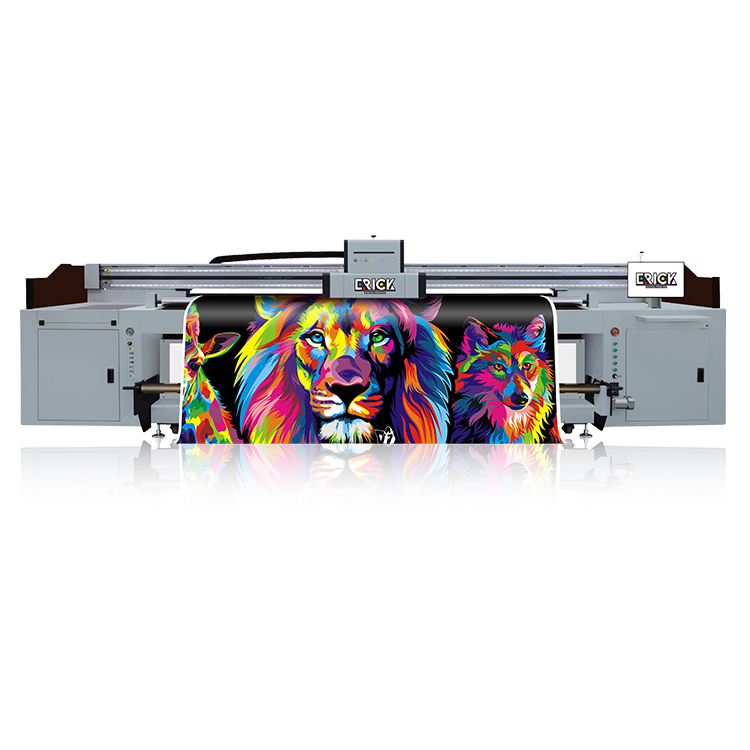

UV Hybrid Printer ER-HR 1800/3200/5000/6600PRO with Konica 1024i/1024A/Ricoh G5/Ricoh G6: A Paradigm Shift in Printing Technology

In the ever-evolving world of printing technology, the UV Hybrid Printer ER-HR 1800/3200/5000/6600PRO is a real game changer. With its advanced features and state-of-the-art Konica 1024i/1024A/Ricoh G5/Ricoh G6 printheads, this printer opens up a world of creative possibilities for businesses and individuals.

The UV Hybrid Printer ER-HR series combines UV and hybrid technologies, making it incredibly versatile. It is capable of printing on a variety of substrates, including rigid materials like acrylic, glass, and wood, as well as flexible materials like vinyl and fabric. This makes it ideal for signage, promotional materials, packaging and even textile printing.


Product Detail

Product Tags

Detail-03

Model No.
ER-HR1800/3200/5000/6600PRO
Printing Speed
1. Konica 1024i 6PL
Exterior light full color(6pass):100sqm/h
interior light production model(6pass):60sqm/h
interior light sample model(8pass):45sqm/h
Color white color:34sqm/h
Printer Head

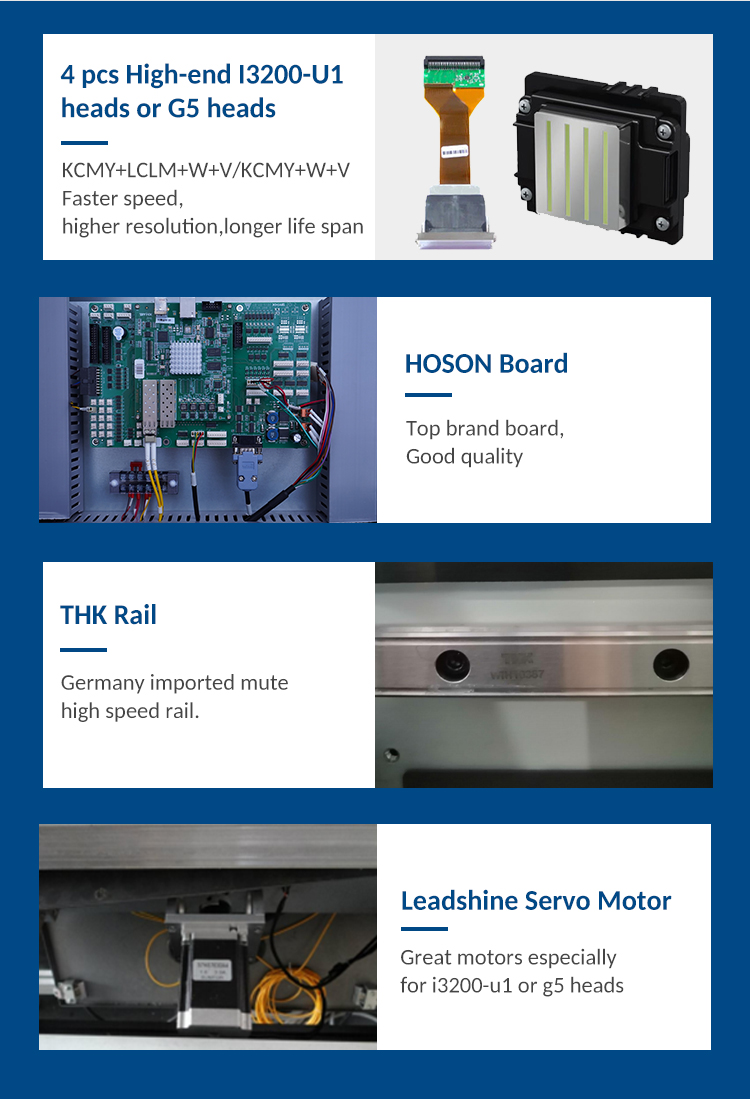

Konica 1024i/Konica 1024A/G5/G6
Max Print Size
1800/3200/5000mm
2. Konica 1024i 13PL
Exterior light full color(6pass):120sqm/h
interior light production model(6pass):75sqm/h
interior light sample model(8pass):57sqm/h
Color white color:40sqm/h
Max Print Height
100mm
Printing Resolution
726*2160 dpi
Ink shortage alarm
Yes
3. Konica 1024A 6PL
Exterior light full color(6pass):120sqm/h
interior light production model(6pass):75sqm/h
interior light sample model(8pass):57sqm/h
Color white color:40sqm/h
Printing Materials
Light box,car sticker,3p cloth,kt board,
pvc board,acrylic etc
Ink Colors
CMYK+Lc+Lm+Lk+W+V
Ink Type
UV Ink
Color system
ICC
File Format
Bmp,TIF,TPG,PDF,EPS
Working Environment
20℃-30℃,humdity 30-65%
Server Motor
Leadshine 750W motor
Languages
Chinese/English
Rip Software
Printfactory
Voltage
AC220V,60hz,4500w
Main Board
BYHX
Machine Size
5406*1475*1615mm; 2000kg
Guide Rail
THK guide rail
Packing Size
5606*1675*1850mm; 2100kg

Uv Hybrid PrinterDetail-05 Detail-06

Detail-12 Detail-13 Detail-14 Detail-15 Detail-16 Detail-17 Detail-18 Detail-19
