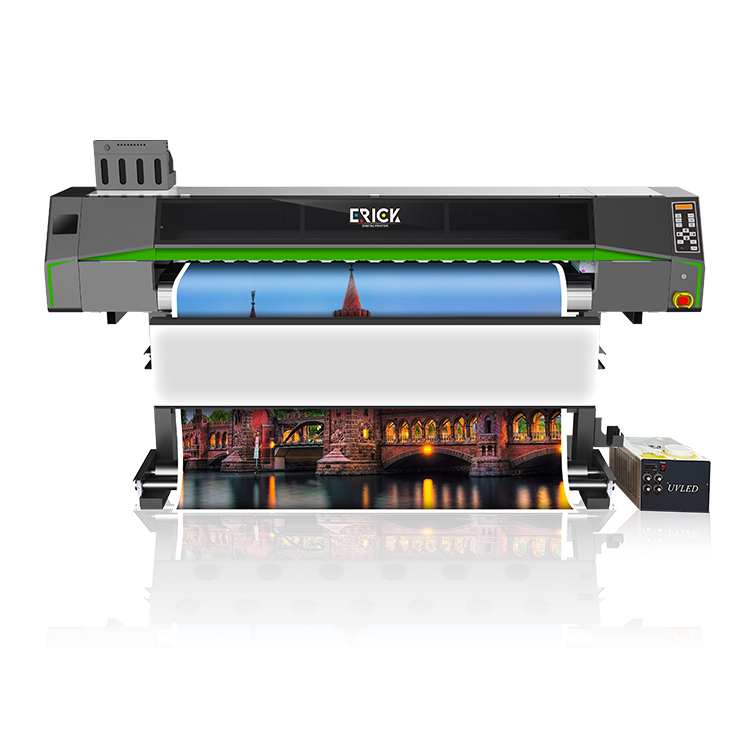

Uv Roll To Roll Printing Machine

short description:

If you’ve worked in the printing industry, you’ve probably heard of UV roll-to-roll presses. These machines have revolutionized the way businesses produce high-quality print on web materials. In this article we will discuss the ER-UR 1804/2204 PRO equipped with 4 I3200-U1 printheads, a UV roll to roll printing machine making waves in the market.

The ER-UR 1804/2204 PRO is essentially a state-of-the-art UV roll-to-roll printing machine designed to meet the growing demand for fast and efficient production of high-quality prints. One of the standout features of this machine is its 4 I3200-U1 print heads, which increase printing speed and provide excellent color accuracy.

With a UV roll-to-roll printing machine, you can print on a variety of types of materials, including vinyl, fabric and film, and achieve stunning results. The UV inks used in these machines cure instantly under ultraviolet light, allowing prints to be completed and delivered in no time. The process is not only time-saving but also environmentally friendly, as it does not require additional drying equipment and reduces energy consumption.


Product Detail

Product Tags

Detail-01 Detail-02

Model No.
ER-UR1804/2204PRO
4pcs I3200 head
Printing Speed
4pcs I3200 head :
720*1200dpi 4pass 16sqm/h
720*2400dpi 6pass 13sqm/h
Printer Head
4pcs I3200-U1 printheads
Max Media Weight
25±5 KG
Max Print Size
1800/2200mm
Operating System
WINDOWS 7/ WINDOW 10
Max Print Height
1-5mm
Interface
3.0LAN
Printing Resolution
Standard Dpi: 720×1200dpi
Software
Sai PhotoPrint/Ripprint
Control system
Hoson
Voltage
110V/ 220V
Nozzle Number
3200
Working Environment
15-28 Degrees.
Ink Colors
CMYK
Power Consumption
1350W
Ink Type
Eco Solvent Ink
Package Type
Wooden Case
Ink Supply
2L ink tank with positive pressure
continuos supply (Bulk ink system)
Machine Size
3025*824*1476(H)mm
File Format
PDF,JPG,TIFF,EPS,AI,etc
Net Weight
280kgs
Media Feeding System
Manual
Gross Weight
330kgs
Printing Quality
True Photographic Quality
Packing Size
2915*760*860(H)mm
Materials to Print
PP Paper/Backlit fifilm/Wall paperlvinyl
One-way vision/Flex banner etc

Uv Roll To Roll Printing Machine
