Vinyl Sublimation Printer

short description:

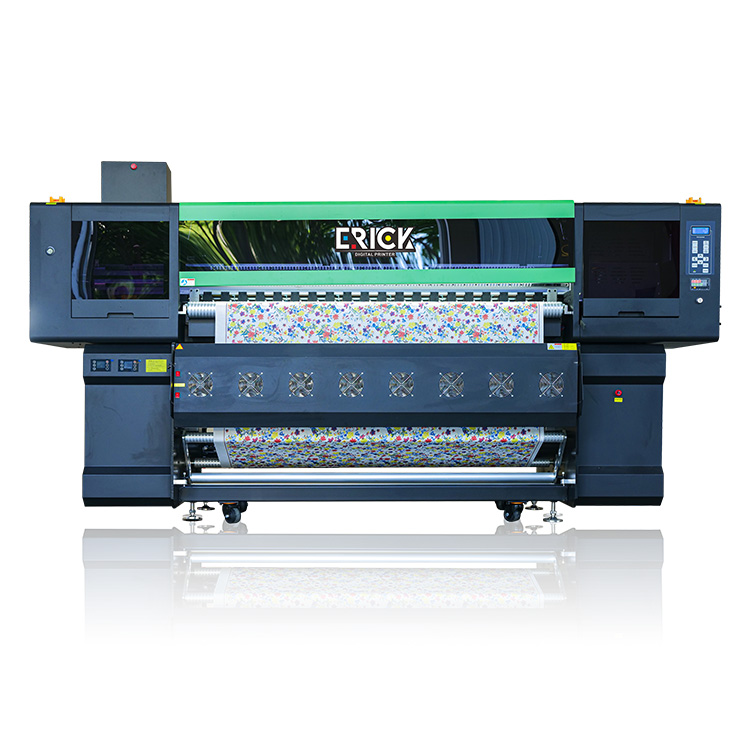

ER-SUB 1808PRO with 8pcs I3200-A1(3.5pl): cutting edge dye sublimation printer

In the ever-evolving world of digital printing, dye-sublimation printers occupy a special place because of their ability to create vibrant and long-lasting prints on a variety of surfaces. Among the various dye sublimation printers available in the market, the ER-SUB 1808PRO with 8pcs I3200-A1(3.5pl) stands out as a real game changer.

The ER-SUB 1808PRO is a top dye sublimation printer that combines innovation and efficiency to deliver outstanding print results. The printer is equipped with eight I3200-A1 printheads, each with a drop size of 3.5 picoliters, to ensure precise, detailed printing. Working in harmony, these printheads produce high-resolution images, vibrant colors and smooth gradients, making them ideal for businesses in the textile, advertising and interior design industries.


Product Detail

Product Tags

Detail-01 Detail-02 Detail-03

Model No.
ER-SUB1808PRO
Printing Speed
CMYK:1pass(720*600dpi) 360sqm/h
2pass(720*1200dpi) 200sqm/h
3pass(720*1800dpi) 135sqm/h
Printhead
8pcs I3200-A1(3.5pl)
Max Print Size
1800mm
CMYK+LCLMLKLLK:
2pass(720*1200dpi) 200sqm/h
4pass(720*2400dpi) 100sqm/h
Machine Type
Automatic, Heavy Body, Digital Printer
Board
Hoson
Voltage
AC220V±5%,16A,50HZ±1
Ink Colors
CMYK/CMYK+LCLMLKLLK/
Fluorescent red+flfluorescent yellow+
royal blue+orange+red+dark green
Interface
USB3.0
Ink Type
Sublimation dispersion ink
Operating System
WINDOWS 7/WINDOWS 10
Printing Resolution
1200 dpi
Power Consumption
Printing system 2000W
Drying system Max 7500W
Ink Supply system
Positive+automatic ink replenishment
Max Media Length
500meter
Materials to Print
Sunlimation Paper
Working Environment
Tempreature 15℃-32℃,
Humidity:40%-70%(non-condensing)
Feeding&
Take-up system
Air shafts,automatic
File Format
JPG,TIFF,PDF etc
Drying system
External automatic air drying
system all in one
Machine Size
3361*1285*1488mm
Rip software
Ripprint/Maintop6.0/Photoprint/
Onyx/Printfactory
Hardware requirements
CPU i7, hard disk 500G,running memory 16G,
ATI independent display 4G memory

Vinyl Sublimation PrinterDetail-06Detail-12 Detail-13 Detail-14 Detail-15 Detail-16 Detail-17 Detail-18Detail-19
