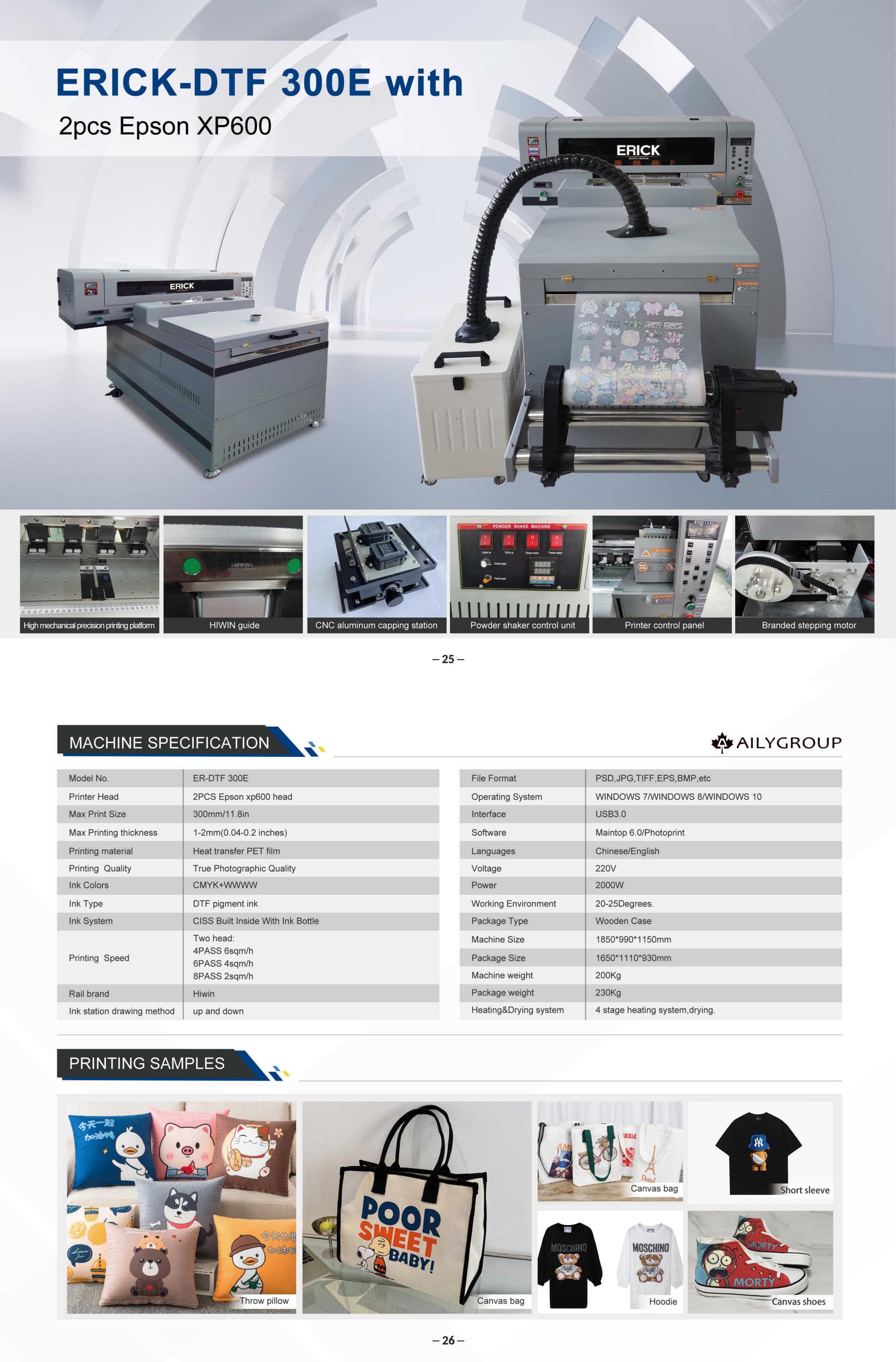

DTF Printer&Powder Shaker Brochure
We usually use XP600/4720/i3200A1 print heads for the DTF printer. As per the speed and size you like to print,you can select the model you need.We have 350mm and 650mm printers. The working flow : first the image will be printed on the PET film by the printer,the white ink covered CMYK inks. After printing,the printed film will go to the powder shaker. The white powder will be sprayed on the white ink from the powder box. By shaking ,the white ink will be covered by the powder evenly and the unused powder will be shaked down then collected into one box. After that,the film goes into the dryer and the powder will be melted by the heating.Then the PET film image is ready. You can cut off the film as per the pattern you need. Put the cut film on the right place of the T-shirt and use the heating transfer machine to transfer the image from PET film to T-shirt. After that you can split the PET film. The beautiful T-shirt is done.
We provide consumables for your printing. All kinds of print heads with reasonable price, CMYK and white inks,PET film, powder… and auxillary machines such as heating transfer machine. We can also provide other solutions for you in the future,fluorescence ink printing, no powder printing….
Name | DTF PET Film Printer |
Model No. | DTF A3 |
Printer Head | 2PCS Epson xp600 head |
Max Print Size | 350CM |
Max Printing thickness | 1-2mm(0.04-0.2 inches) |
Printing material | Heat transfer PET film |
Printing Quality | True Photographic Quality |
Ink Colors | CMYK+WWWW |
Ink Type | DTF pigment ink |
Ink System | CISS Built Inside With Ink Bottle |
Printing Speed | One head:4PASS 3sqm/h Two head:4PASS 6sqm/h 6PASS 2sqm/h 6PASS 4sqm/h 8PASS 1sqm/h 8PASS 2sqm/h |
Rail brand | Hiwin |
Ink station drawing method | up and down |
File Format | PDF,JPG,TIFF,EPS,BMP,etc |
Operating System | WINDOWS 7/WINDOWS 8/WINDOWS 10 |
Interface | 3.0 LAN |
Software | Maintop 6.0/Photoprint |
Languages | Chinese/English |
Voltage | 220V |
Power | 800W |
Working Environment | 15-35Degrees. |
Package Type | Wooden Case |
Machine Size | 950*600*450mm |
Package Size | 1060*710*570mm |
Machine weight | 50KG |
Package weight | 80KG |
Price Includes | Printer,software, Inner six angle wrench, Small screwdriver, Ink absorption mat, USB cable, Syringes, Damper, User manual, Wiper, Wiper Blade, Mainboard fuse, Replace screws and nuts |
Powder shaking machine | |
Max media width | 350mm (13.8nches) |
Speed | 40m/h |
Voltage | 220V |
Power | 3500W |
Heating&Drying system | 6 stage heating system,drying.air cooling |
Machine Size | 620*800*600mm |
Package Size | 950*700*700mm 45kg |
