YL650 DTF film printer

short description:

1. Using 2pcs 4720 Printer Head(i3200-A1 is also avaliable): High precision & Stability, Easy to maintain, Faster speed
2. Aluminum up-down capping sation: strong durability support high precision printing
3. High Printing Accuracy: 2.5pl
4. 2L ink tank with ink alarm + 200ml sencondary ink bottle: large volume ink supply, less production interrupt
5. Ink shortage alarm: remind operator add ink in time to support continual production
6. White ink shaking and circulation system: provide heads from clogging easily
7. Aluminum vaccum paltform: make media stick strongly to the platform
8. Milling  beam and Hiwin guide make stable and precision Movement


Product Detail

Machine Specification

Product Tags

DTF printer is more and more popular in the workshops all over the world.It can print T-shirts,Hoddies,Blouses,Uniforms,Pants,Shoes,Socks,Bags etc. It’s better than sublimation printer that all kinds of fabrics can be printed. The unit cost can be $0.1. You do not need to do the pre-treatment as DTG printer.The DTF printer printed T-shirt can be washed up to 50 times in the warm water without color fading. The machine size is small, you can place it in your room easily. The machine price is also affordable for the small business owner.

We usually use XP600/4720/i3200A1 print heads for the DTF printer. As per the speed and size you like to print,you can select the model you need.We have 350mm and 650mm printers. The working flow : first the image will be printed on the PET film by the printer,the white ink covered CMYK inks. After printing,the printed film will go to the powder shaker. The white powder will be sprayed on the white ink from the powder box. By shaking ,the white ink will be covered by the powder evenly and the unused powder will be shaked down then collected into one box. After that,the film goes into the dryer and the powder will be melted by the heating.Then the PET film image is ready. You can cut off the film as per the pattern you need. Put the cut film on the right place of the T-shirt and use the heating transfer machine to transfer the image from PET film to T-shirt. After that you can split the PET film. The beautiful T-shirt is done.

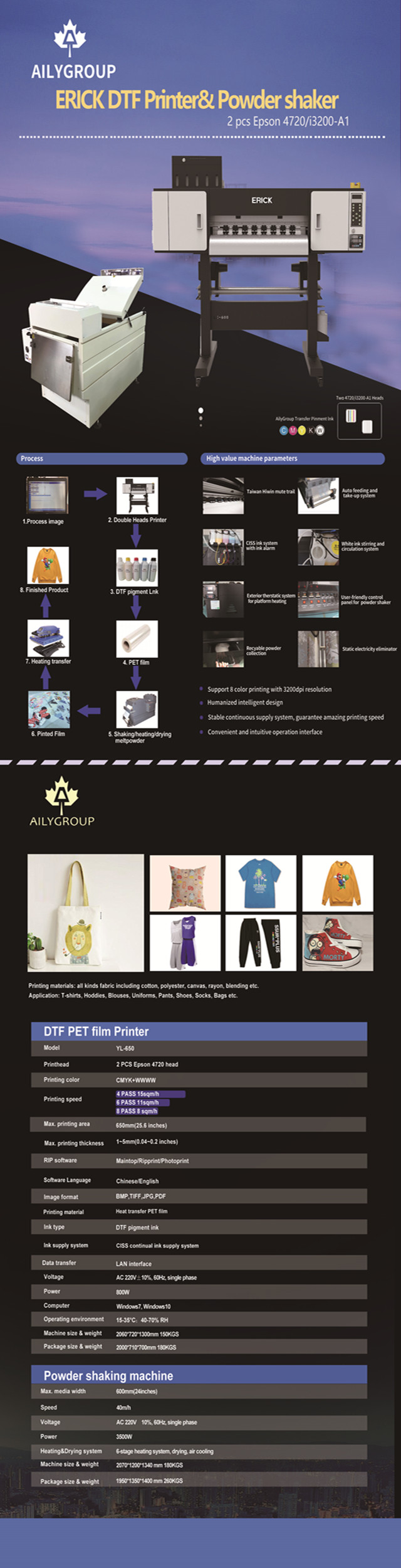

彩页2_副本

Features-Powder shaker

1. 6-stage heating system, drying, air cooling: make powder stay well and dry fast on the film automatically
2. User-friendly control panel: adjust heating temperatures, fan power, turn forward/backward etc
3. Auto media take-up system: collecting film automatically, save labour cost
4. Recycled powder collection box: achieve Maximum utilization of powder, save money
5. Electrostatic elimination bar: provide proper enviroment of shaking powder/heating and drying automatically, save human intervention


  • Previous:
  • Next:

  • Name DTF film printer
    Model No. YL650
    Machine Type Automatic, large format, inkjet, Digital Printer
    Printer Head 2pcs Epson 4720 or i3200-A1 Printhead
    Max Print Size 650mm(25.6 inches)
    Max Print Height 1~5mm(0.04~0.2 inches)
    Materials to Print PET film
    Printing Method Drop-on-demand Piezo Electric Inkjet
    Printing Direction Unidirectional Printing or Bi-directional Printing Mode
    Printing  Speed 4 PASS 15 sqm/h
    6 PASS 11 sqm/h
    8 PASS 8 sqm/h
    Printing  Resolution Standard Dpi: 720×1200dpi
    Printing  Quality True Photographic Quality
    Nozzle Number 3200
    Ink Colors CMYK+WWWW
    Ink Type DTF pigment ink
    Ink System CISS Built Inside With Ink Bottle
    Ink Supply 2L ink tank+200ml secondary ink box
    File Format PDF,JPG,TIFF,EPS,AI,etc
    Operating System WINDOWS 7/WINDOWS 8/WINDOWS 10
    Interface LAN
    Rip Software Maintop/SAi PhotoPrint/Ripprint
    Languages Chinese/English
    Voltage AC 220V∓10%, 60Hz, single phase
    Power Consumption 800w
    Working Environment 20-28 Degrees.
    Package Type Wooden Case
    Machine Size 2060*720*1300mm
    Packing Size 2000*710*700mm
    Net Weight 150KGS
    Gross Weight 180KGS
